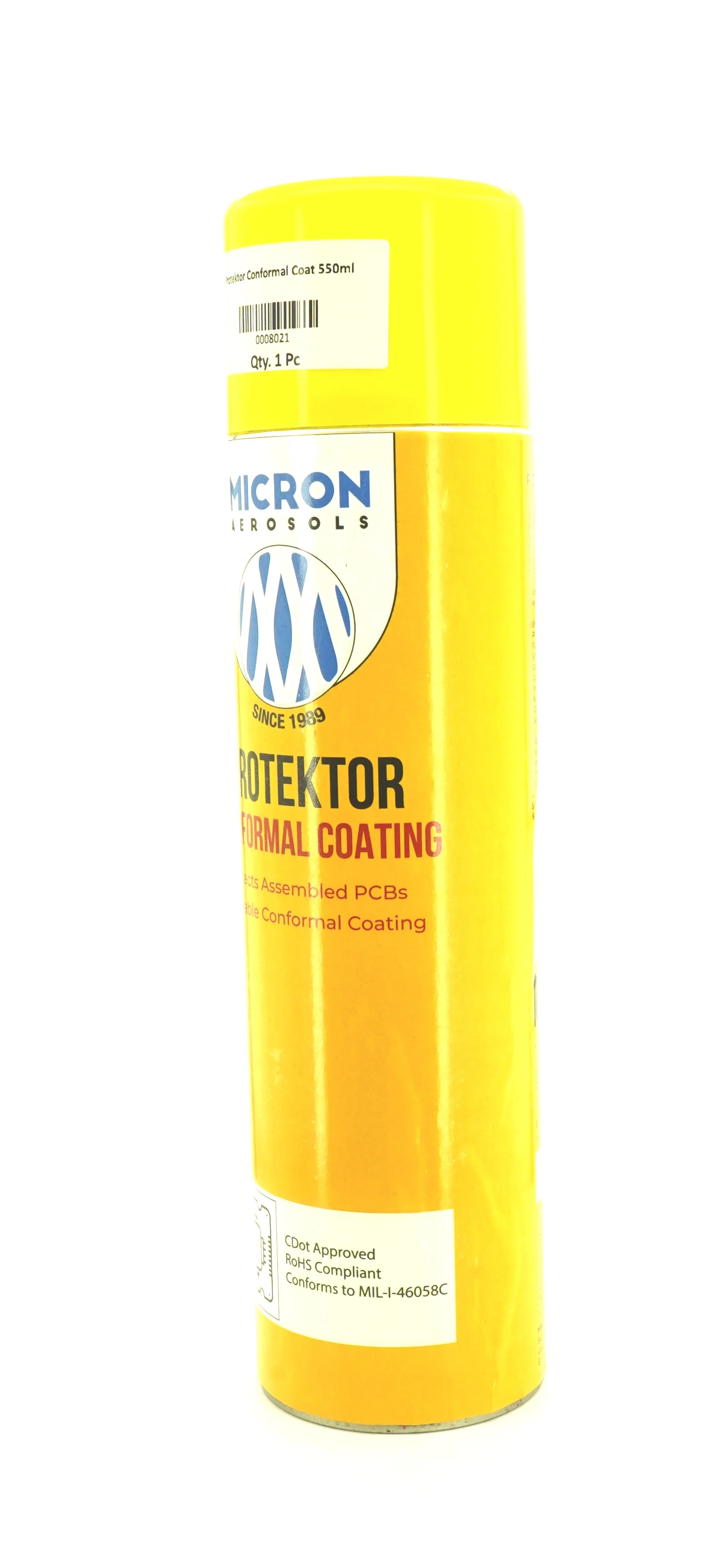

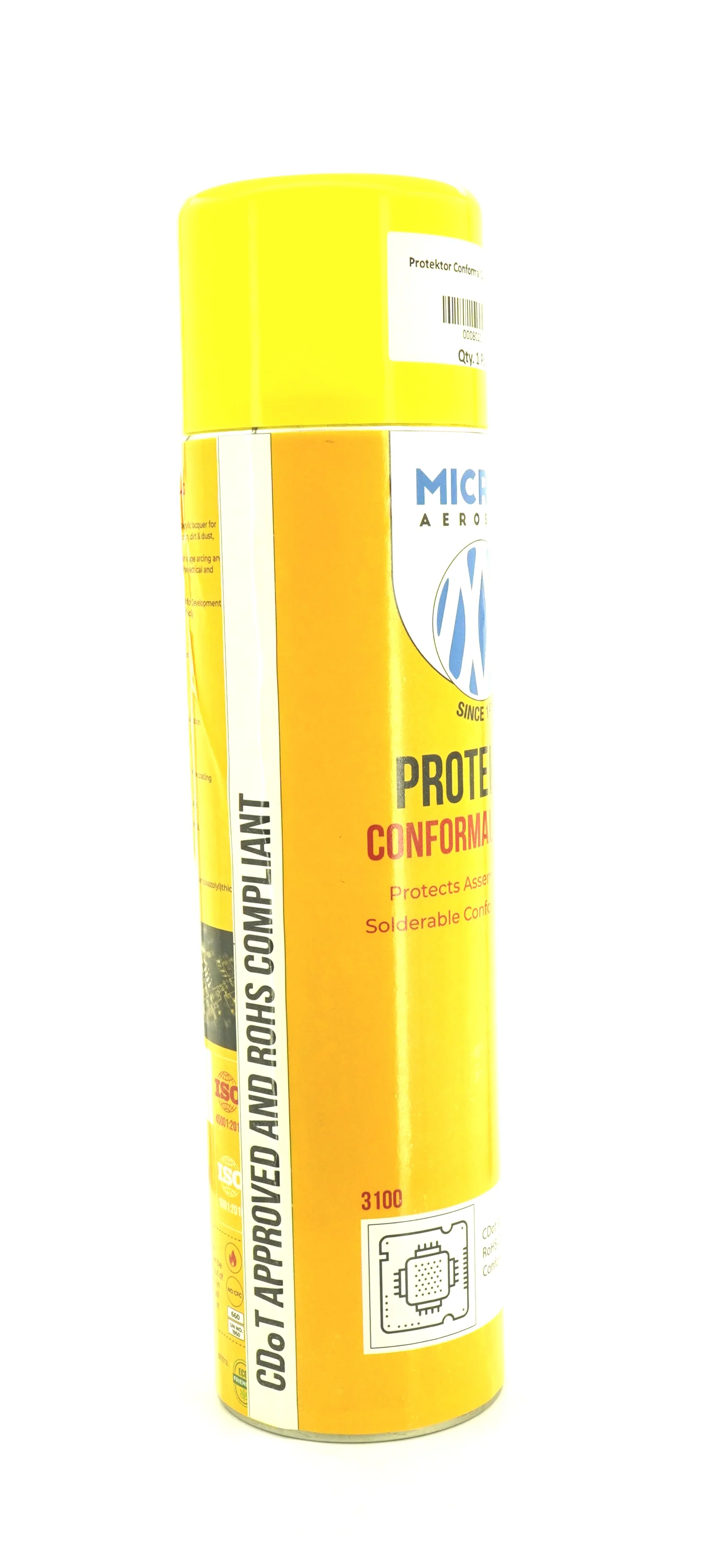

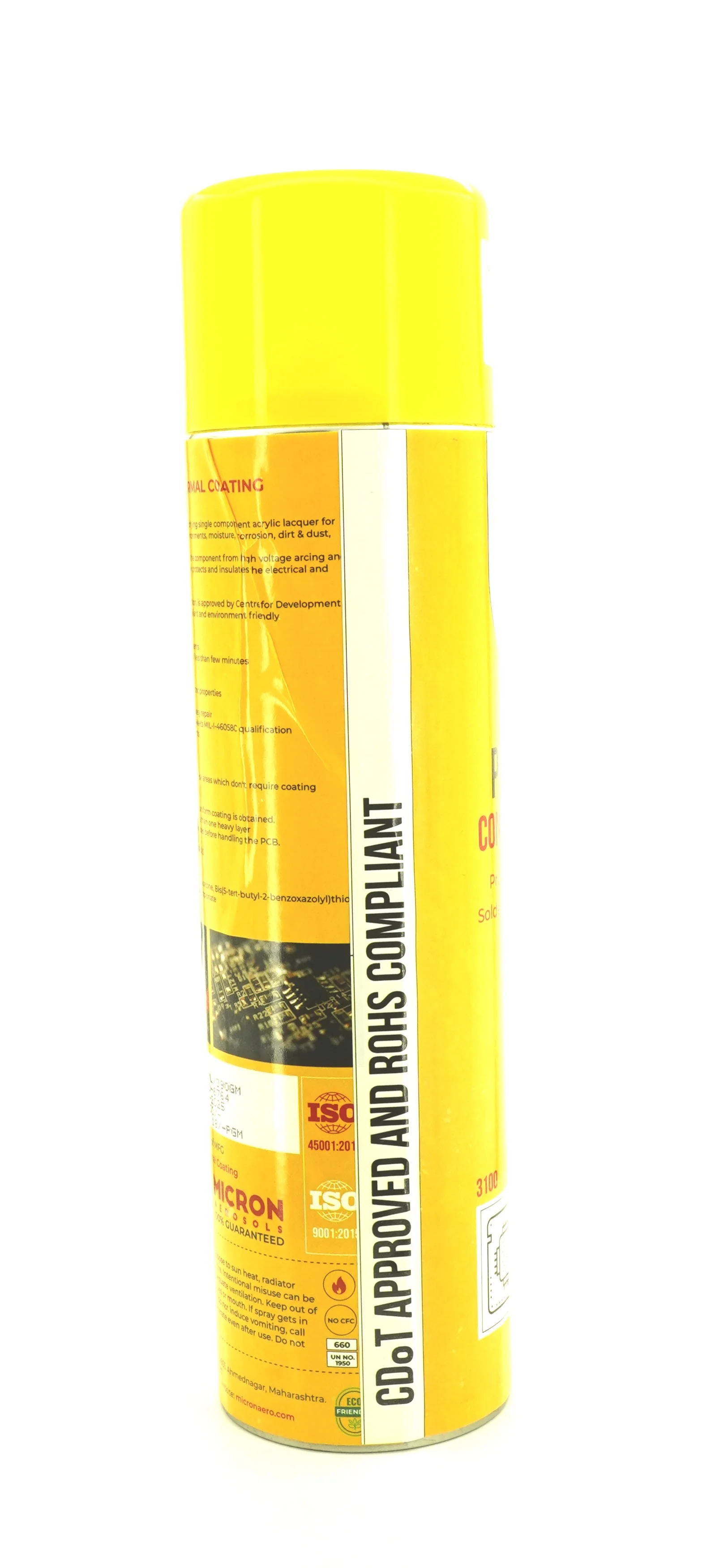

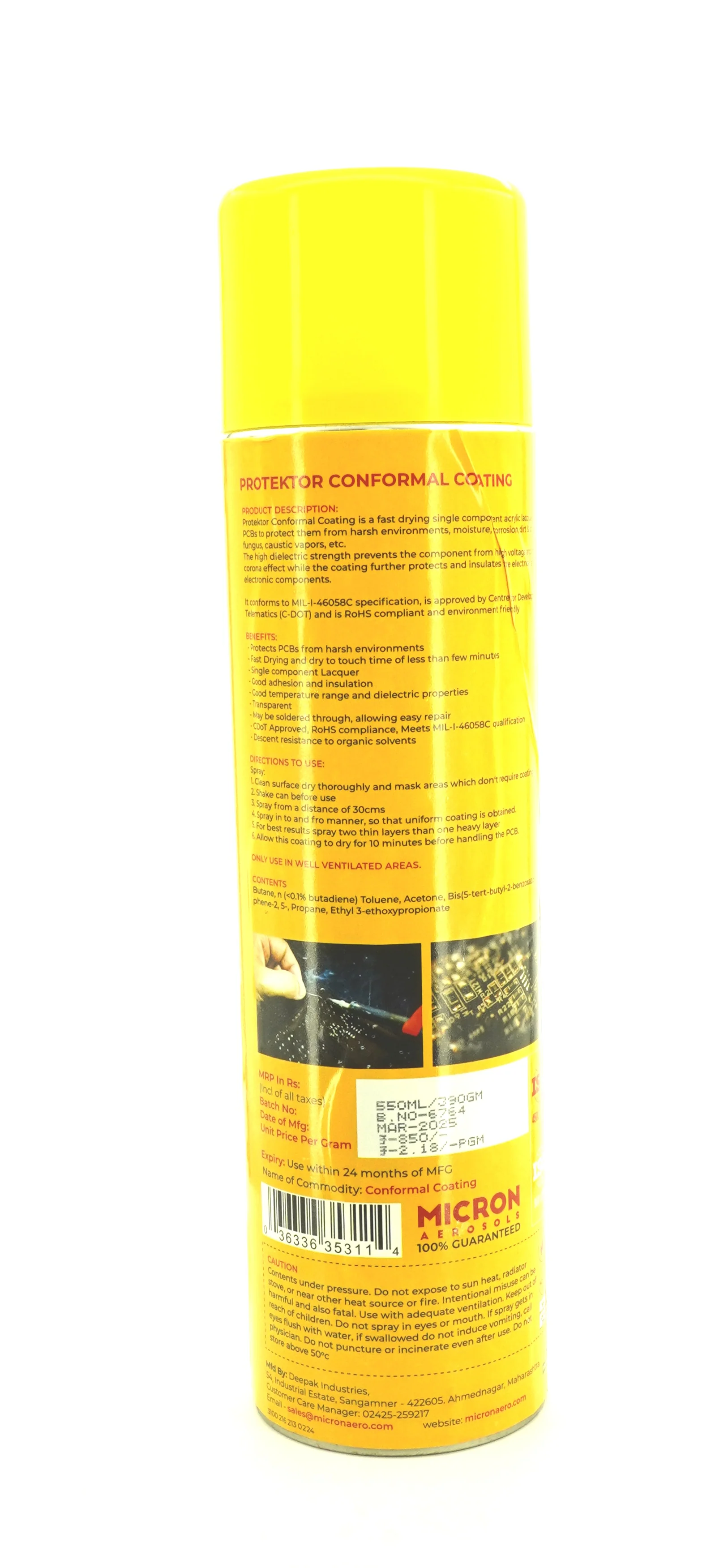

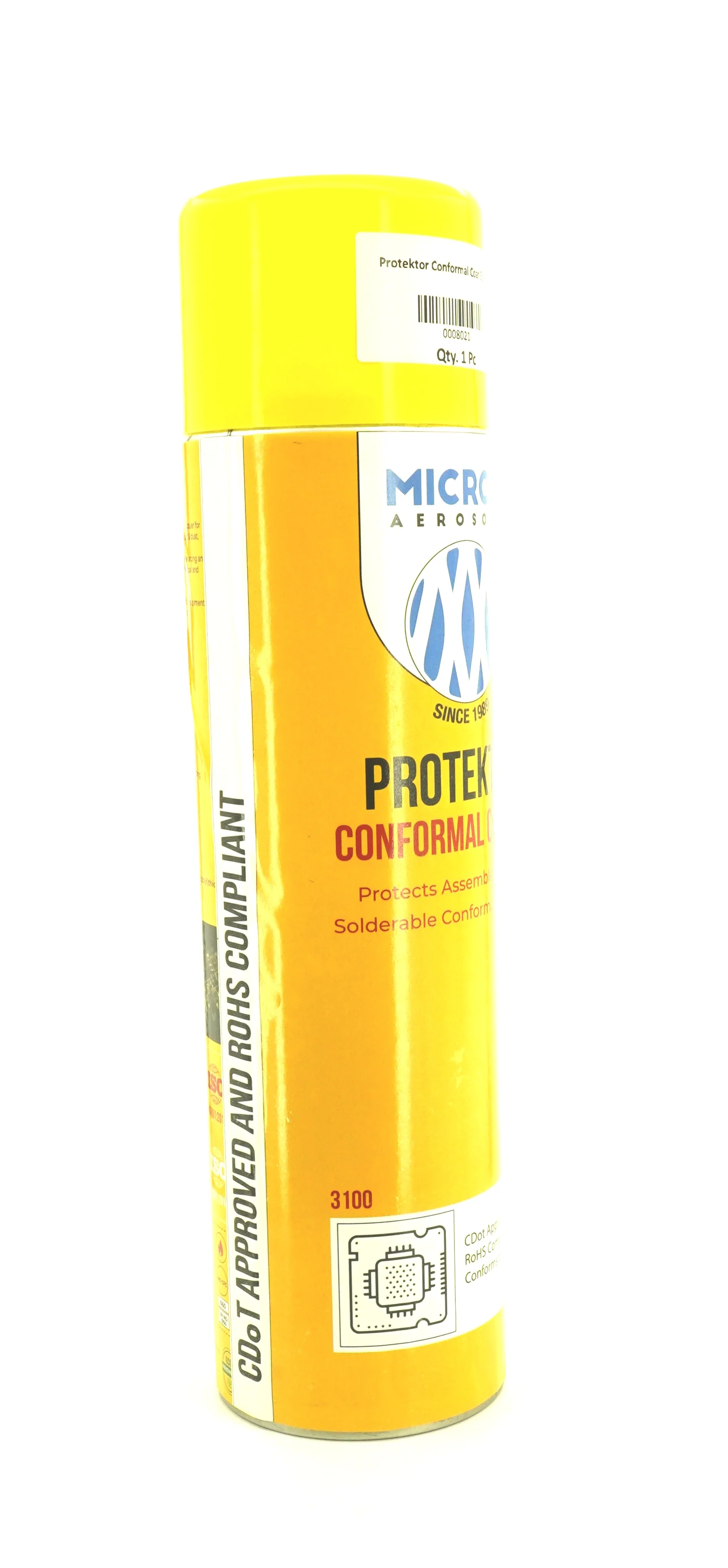

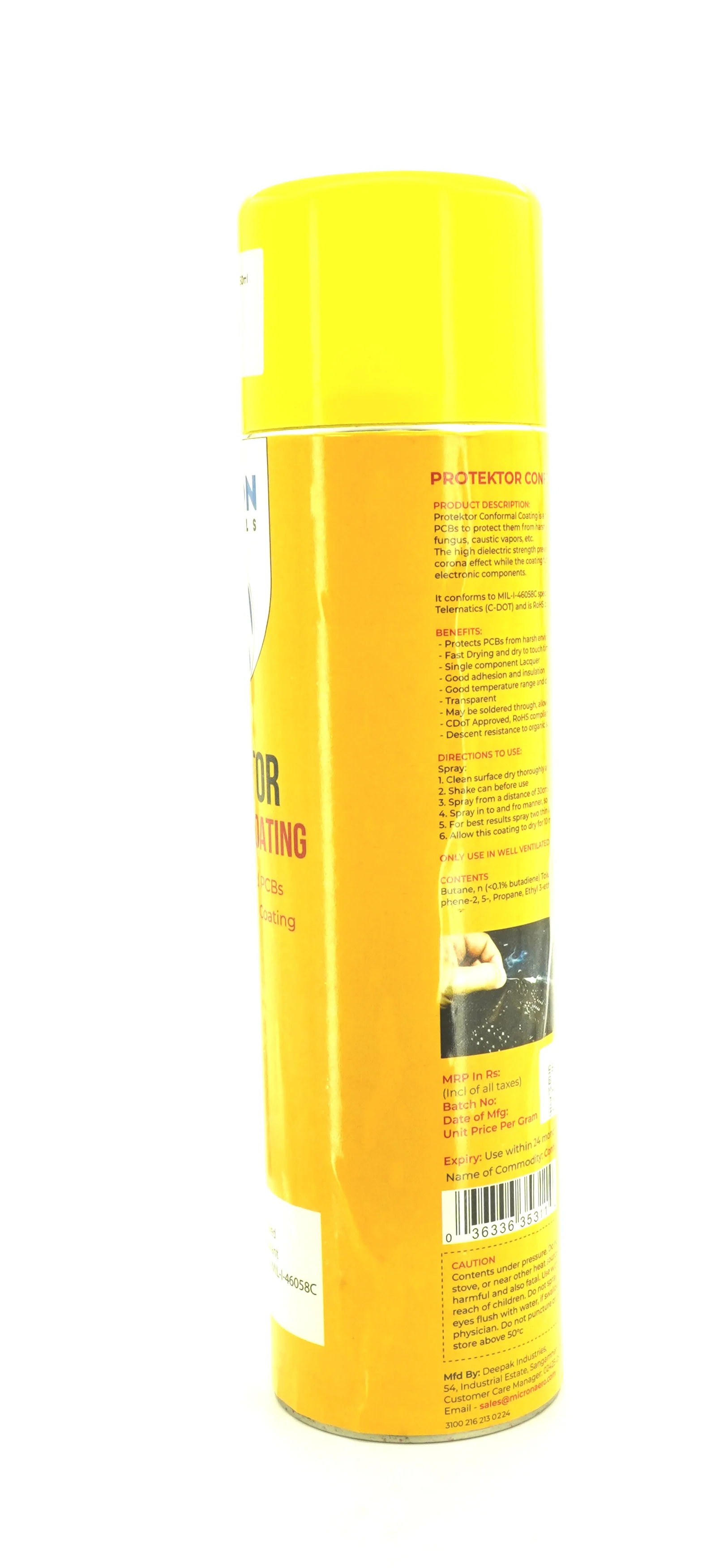

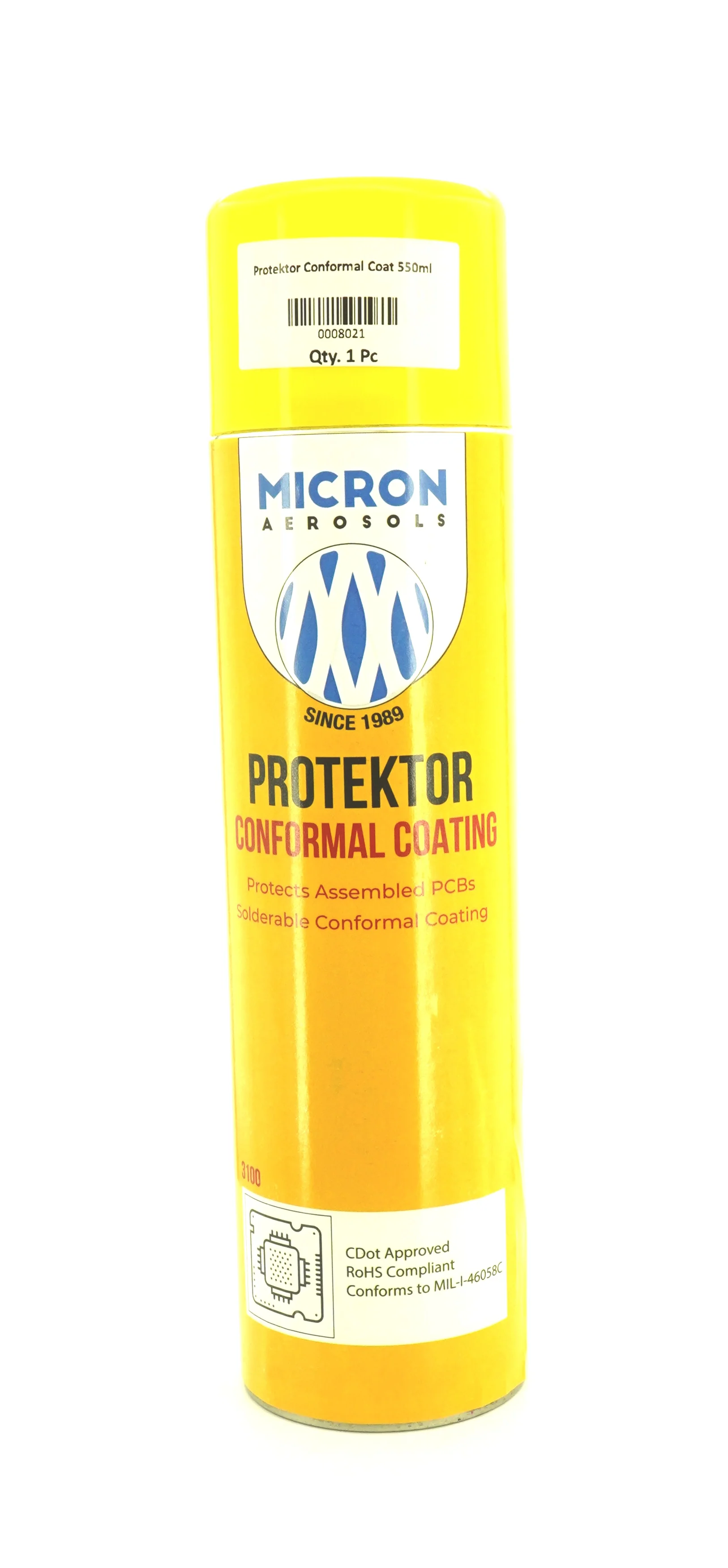

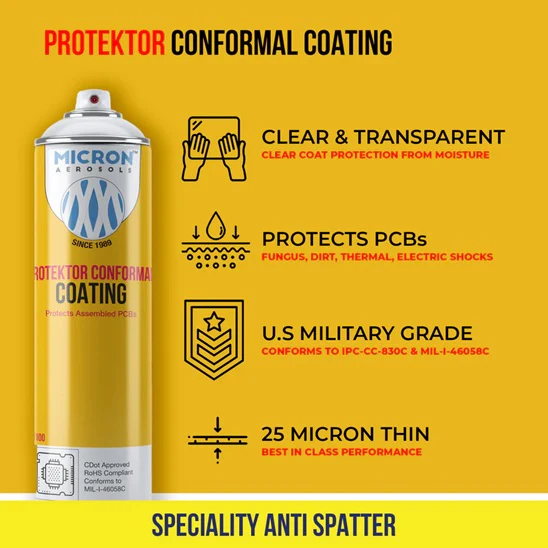

Conformal Coating - Protektor is a fast drying single component acrylic lacquer for PCBs to protect them from harsh environments, moisture, corrosion, dirt & dust, fungus, caustic vapors, thermal shocks, dielectric shocks, Chemical reactions etc.

The high dielectric strength prevents the component from high voltage arcing and corona effect while the coating further protects and insulates the electrical and electronic components.

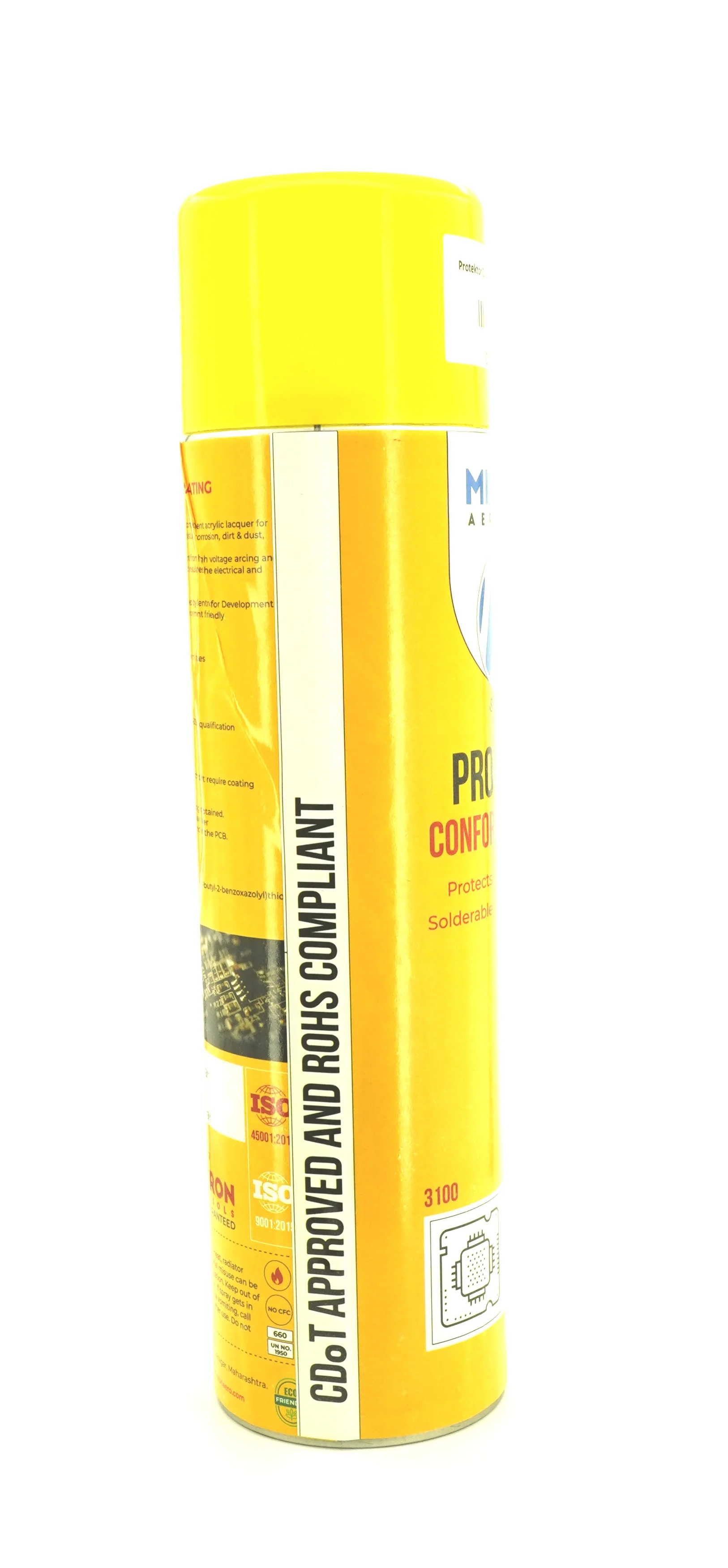

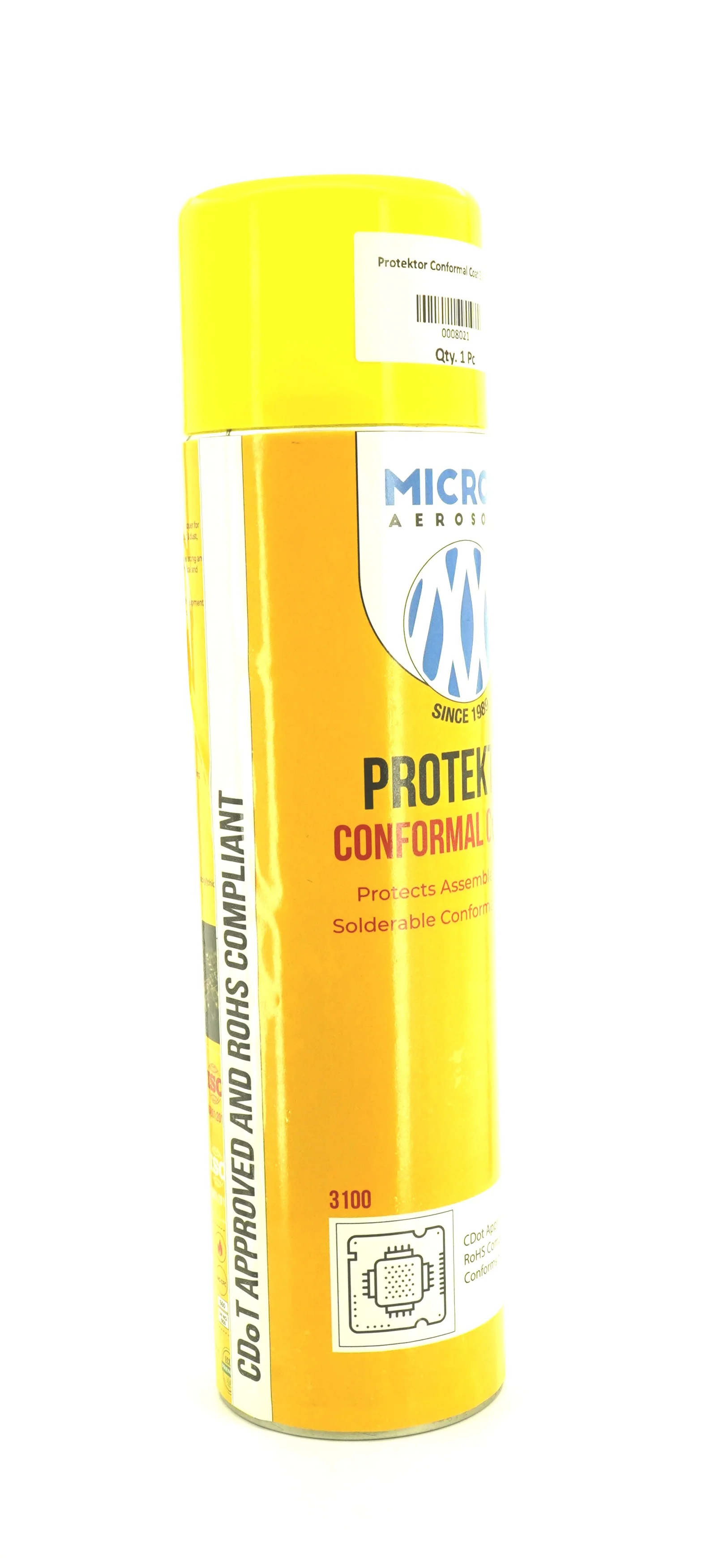

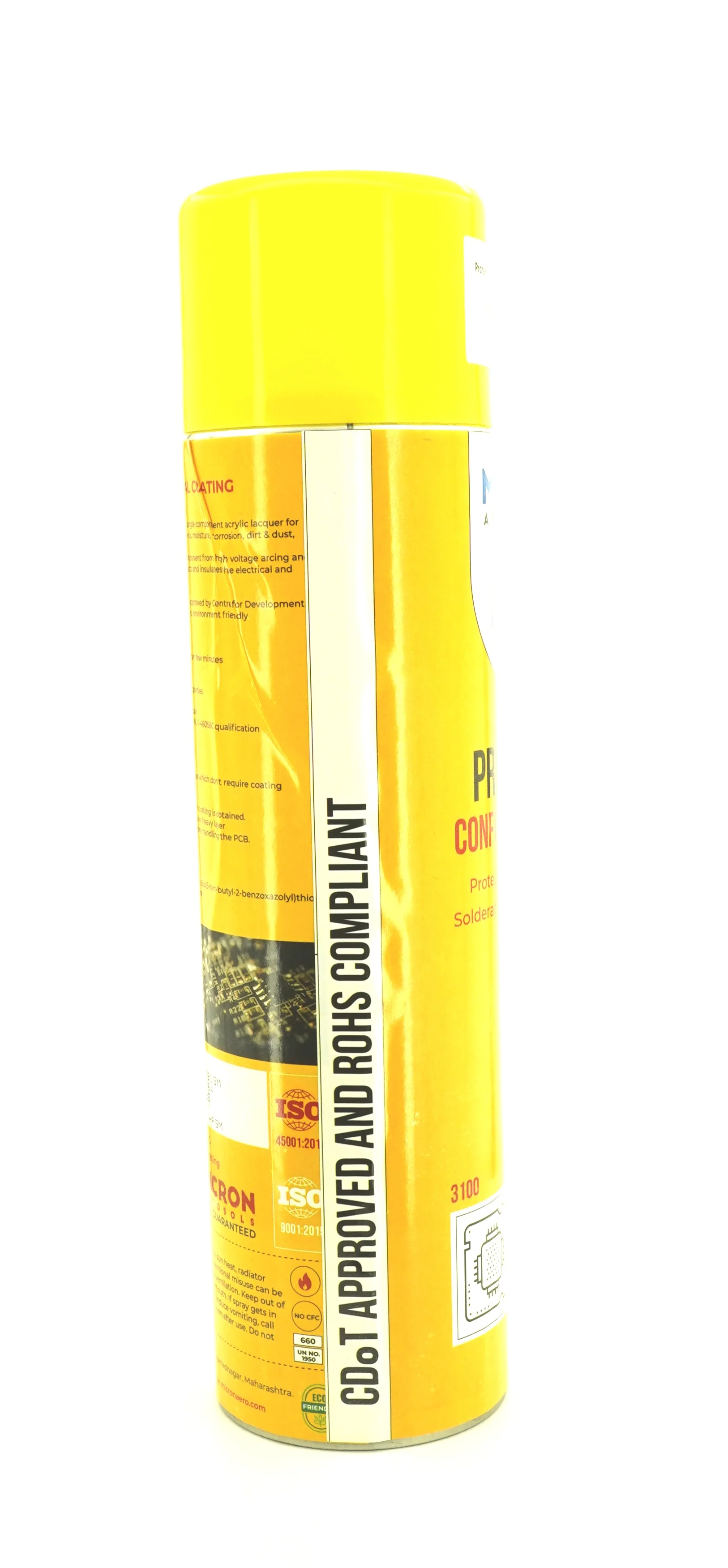

It conforms to IPC-830CC-Military Grade MIL-I-46058C specification, is approved by Centre for Development of Telematics (C-DOT) and is RoHS compliant and environment friendly.

Technical Specification:

• Type: Acrylic Resin (AR)

• Appearance: Clear Transparent

• Specific Gravity: 0.95

• Propellent: Non CFC, Flammable

• Temperature Resistance: -70°C to 120°C

• Dry to Touch Time: 30 Mins

• Film Thickness: 26 Micron

• Clarity: Clear transparent

• Shelf Life: 18 Months

• GRADE: MIL – I – 46058C

Features:

• Fast Drying

• Single Component spray for Printed Circuit Board assemblies
• Protects from Humidity, Fungus & Corrosion by forming film on components

• Provides Insulation against high voltage arcing
• Excellent Flexibility & Solderability
• Black Coated Components can hide your circuits
• Easy to Handle with Dry to tough time at 30mins
• Convenient to apply as aerosol and efficient for assembly line operations\

Applications:

• Telephone and Telephone Exchanges Manufacturing
• Computer Process Control Equipments
• Programmable Logic Controllers
• Electronic Equipments like Weighing Scales, Multimeters
• LCD LED Bulbs, CFL
• Variable Frequency Drives
• Mobiles, Computers, Laptops, Tablets, Hard Drive PCBs
• Automobile Control Computers

Package Includes:

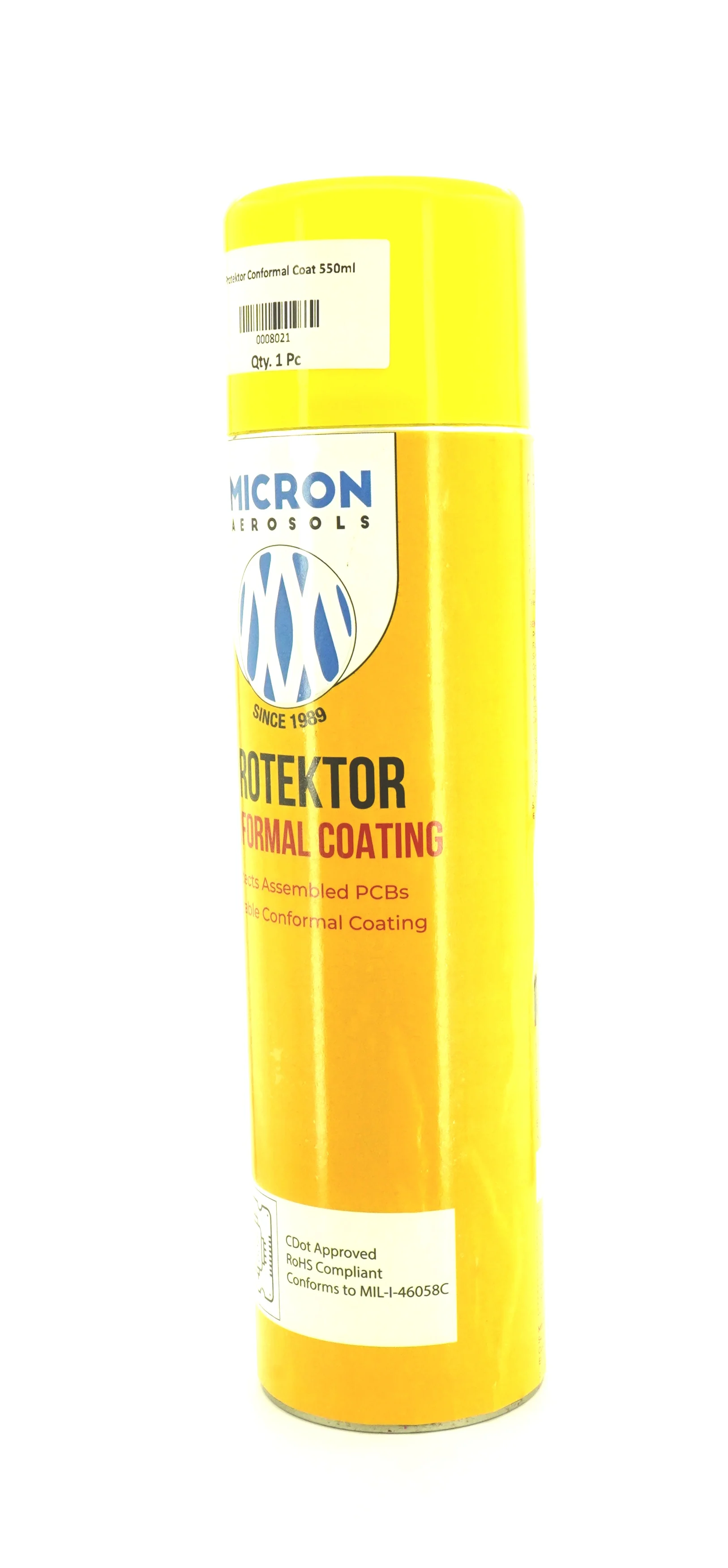

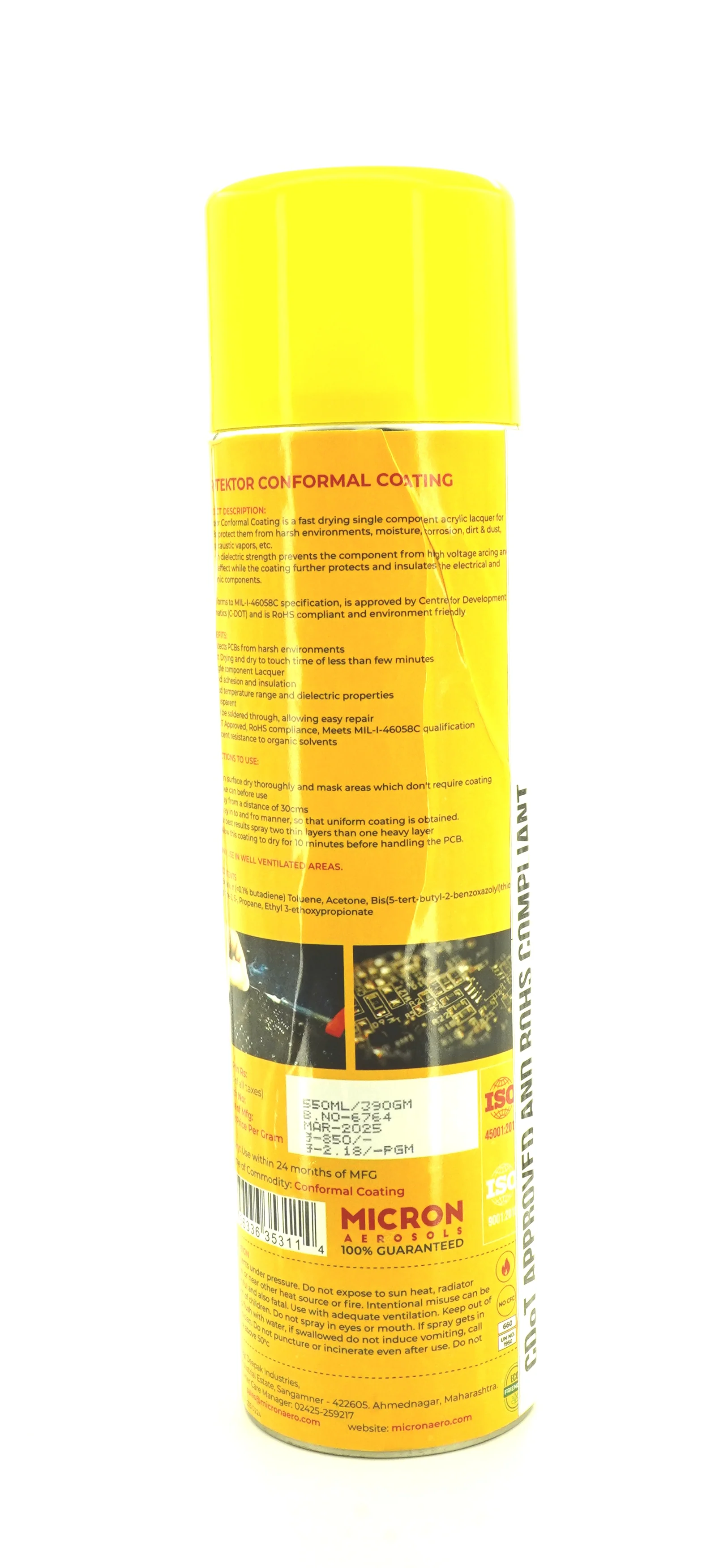

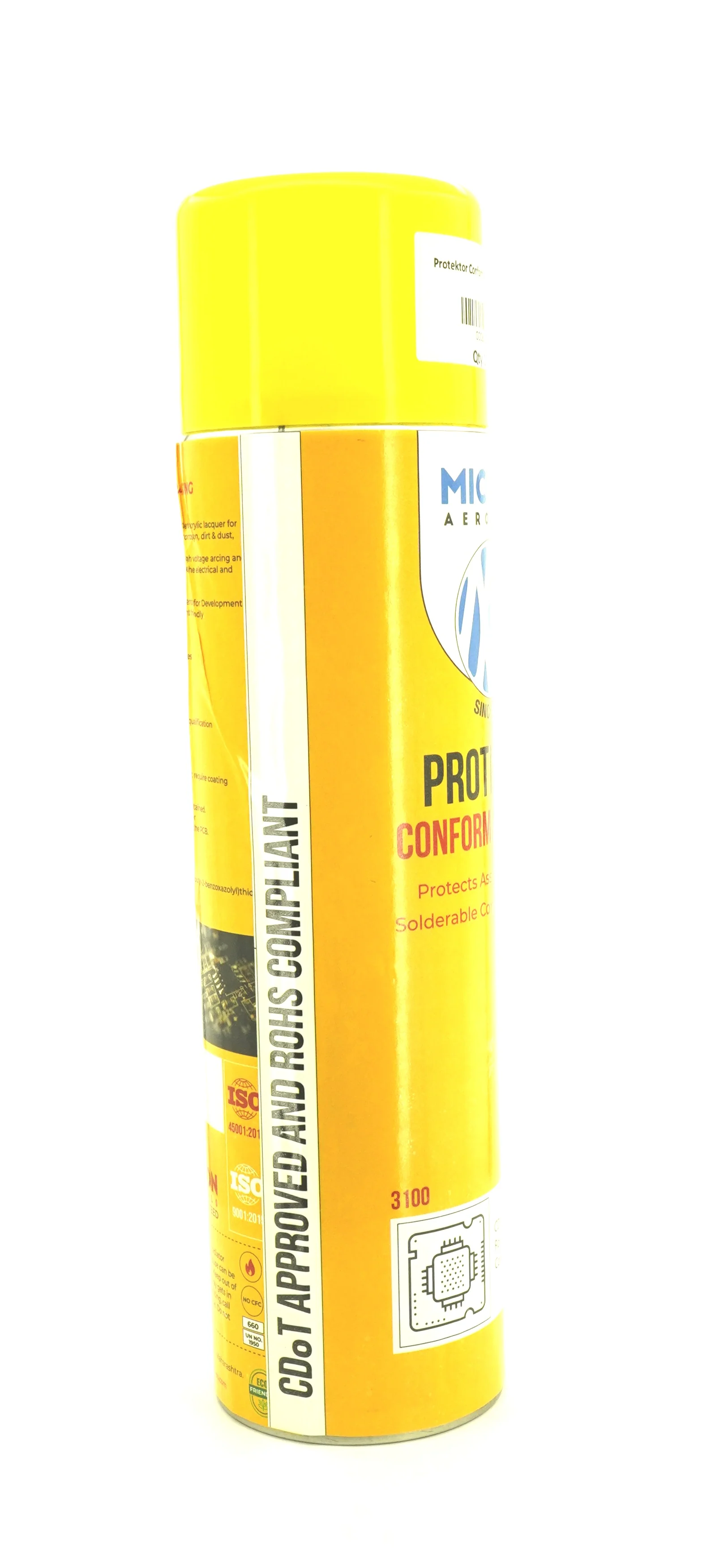

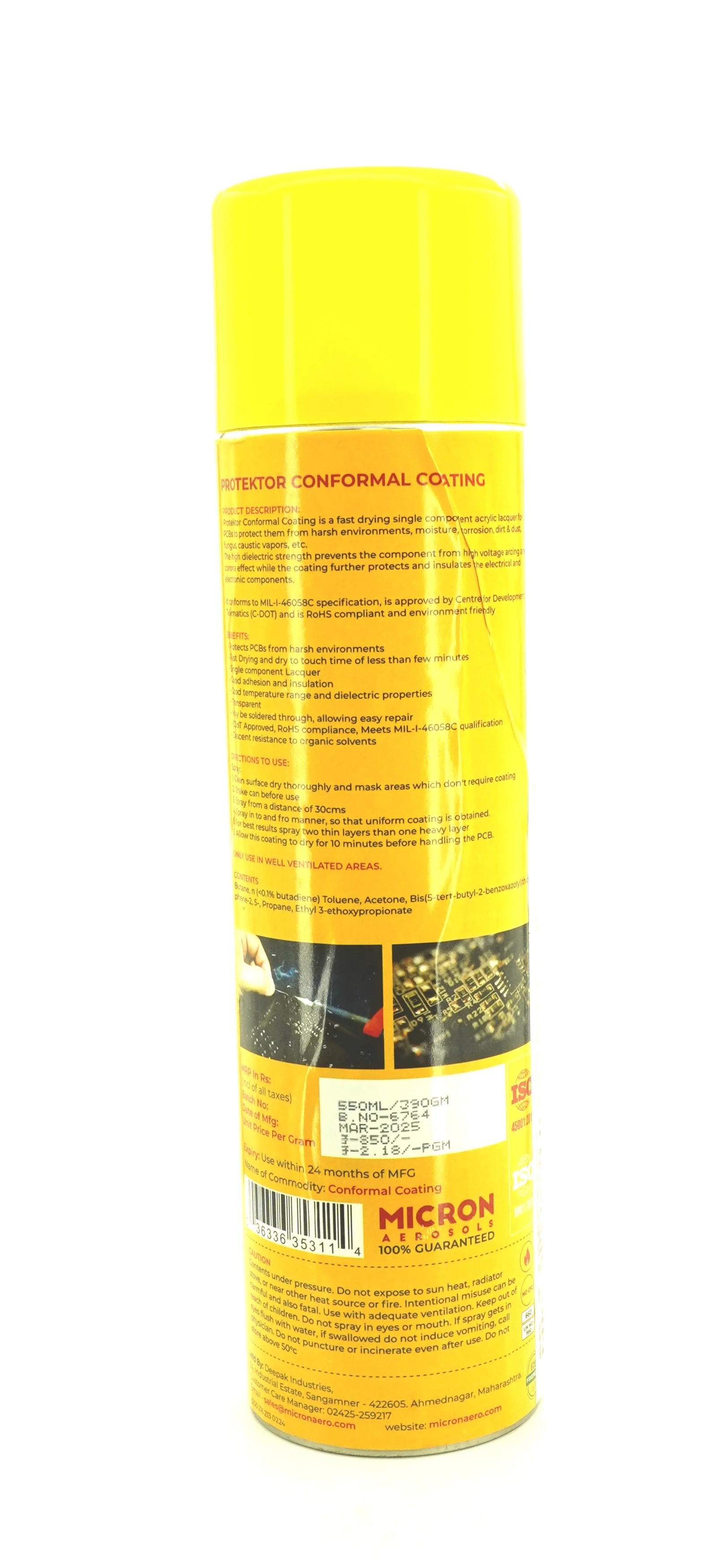

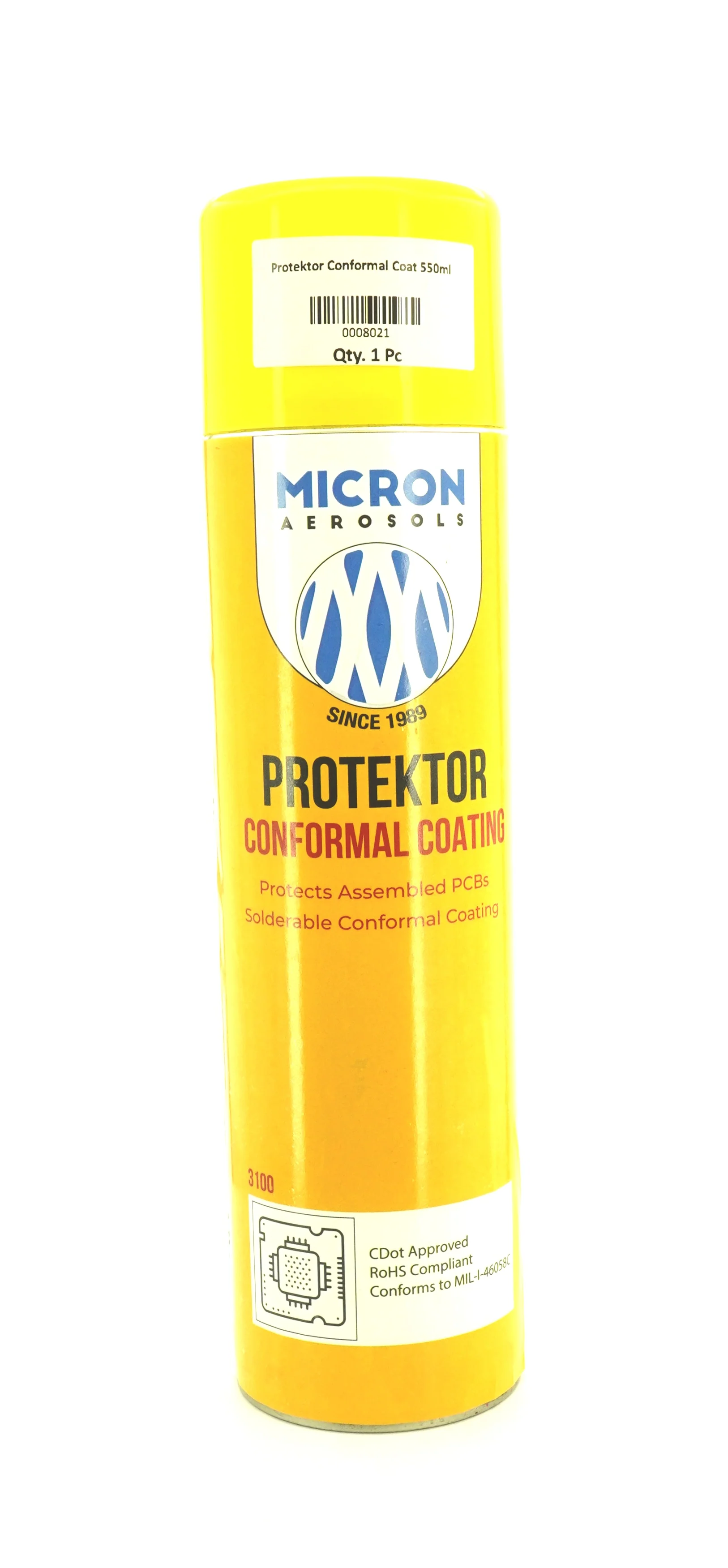

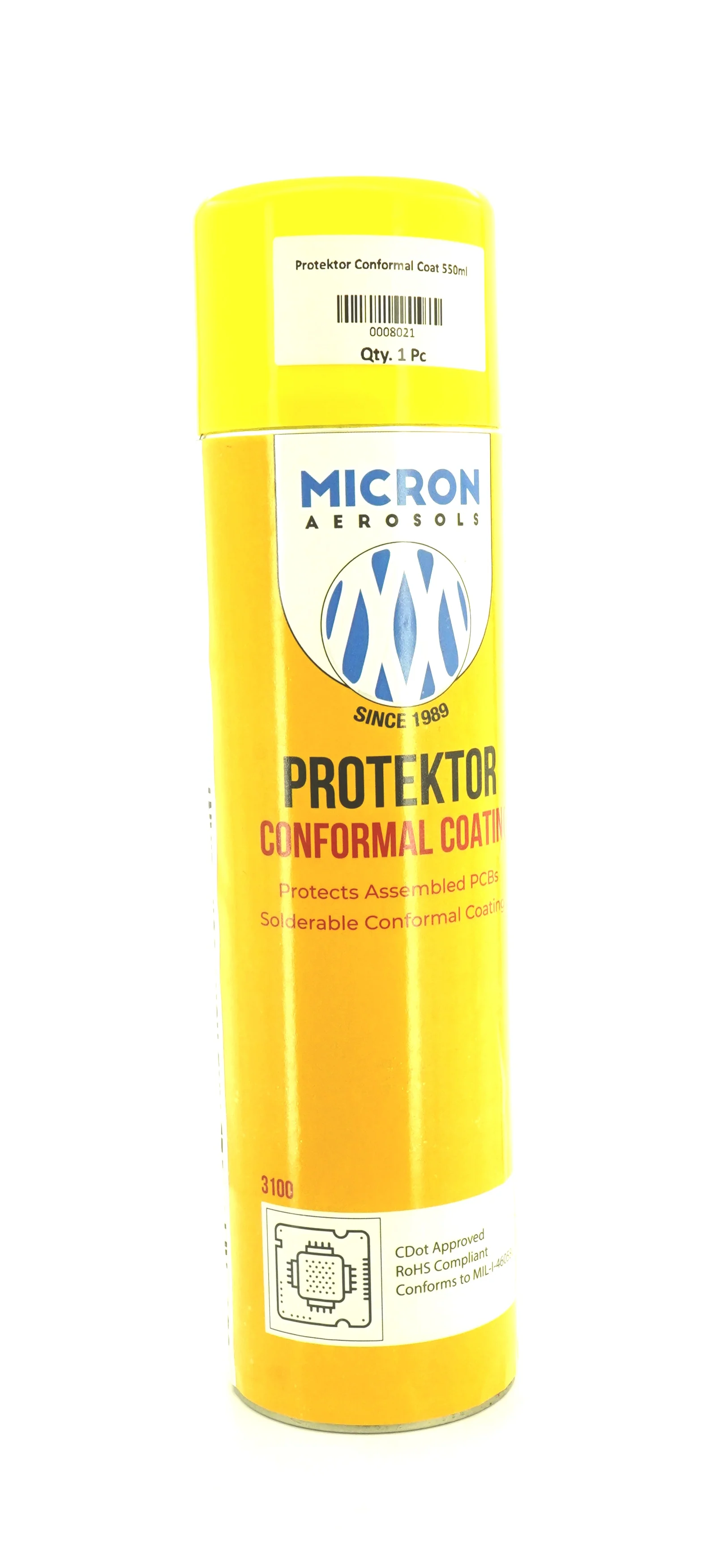

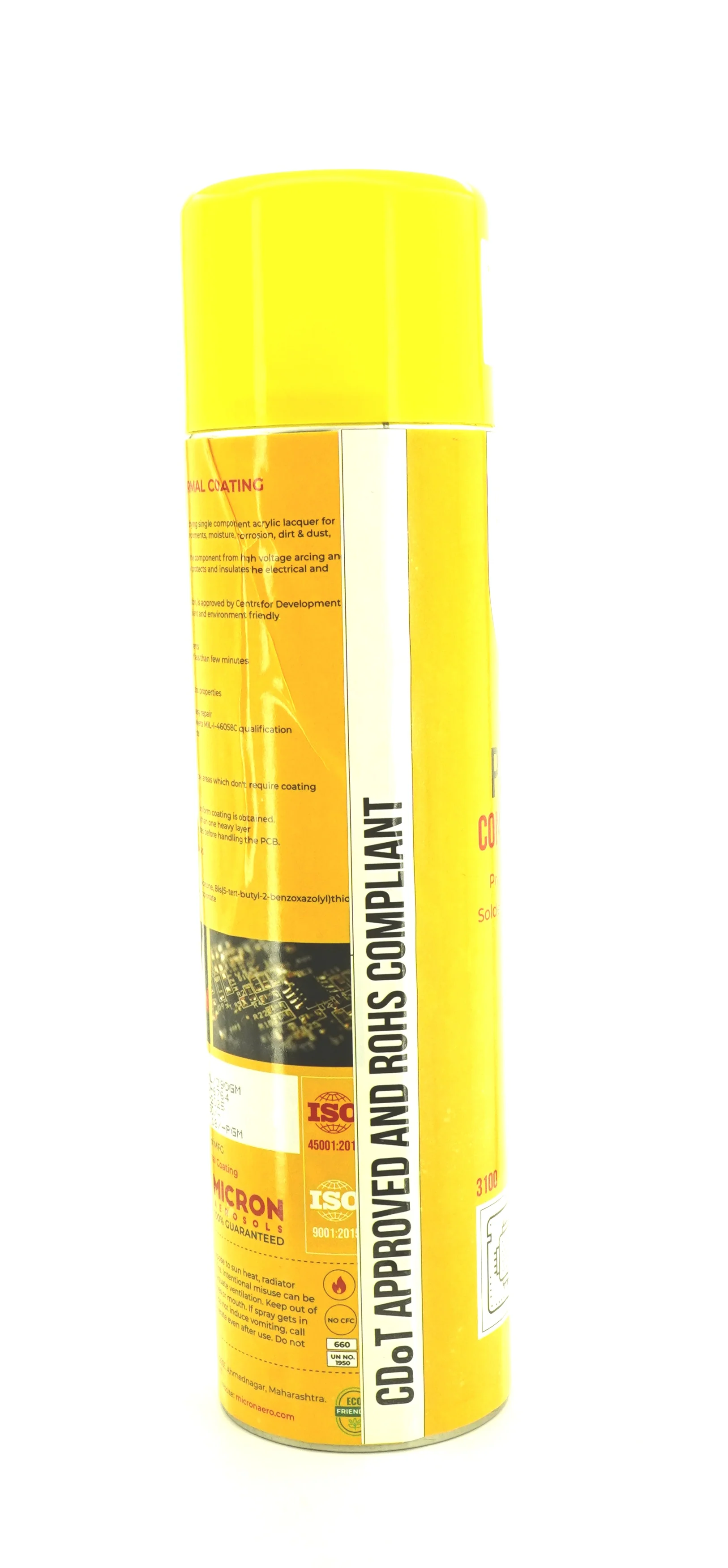

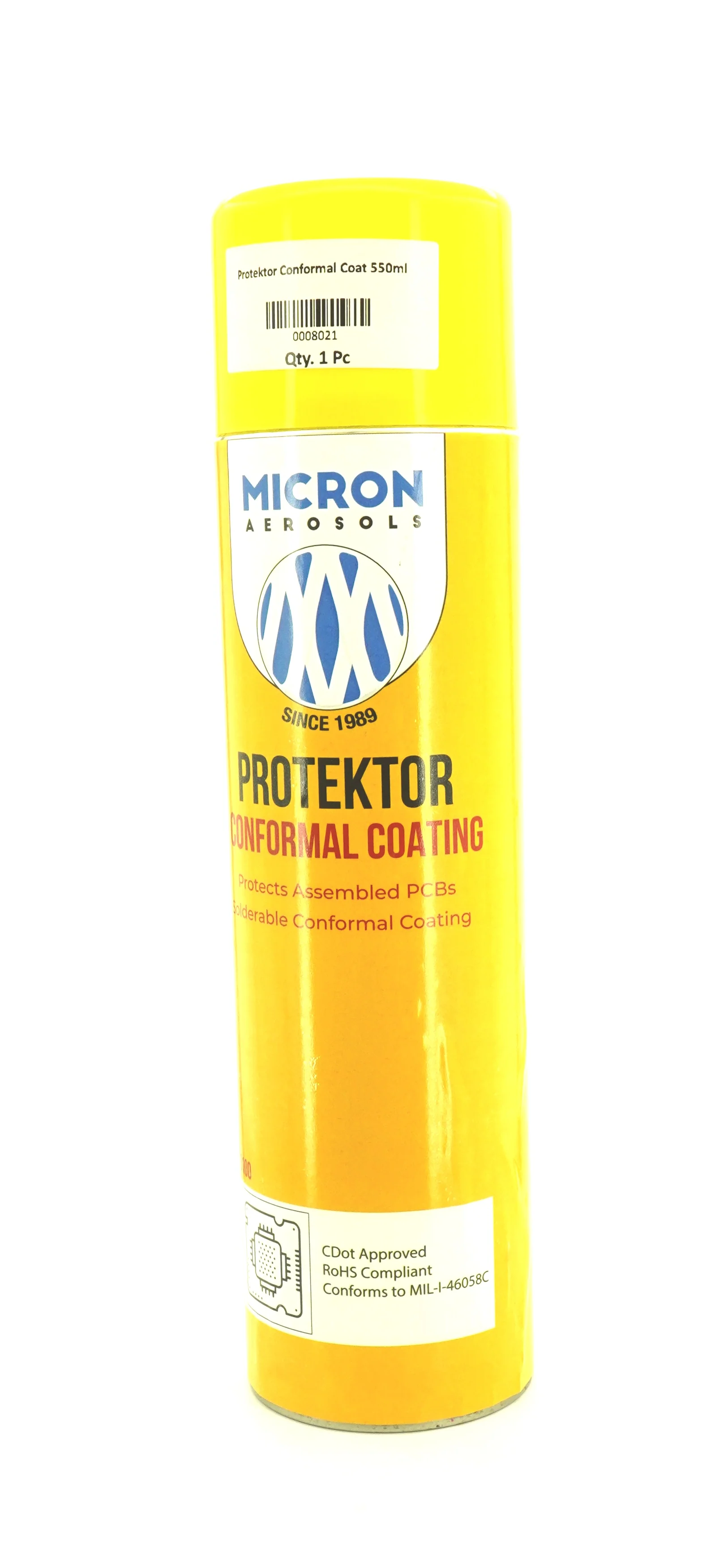

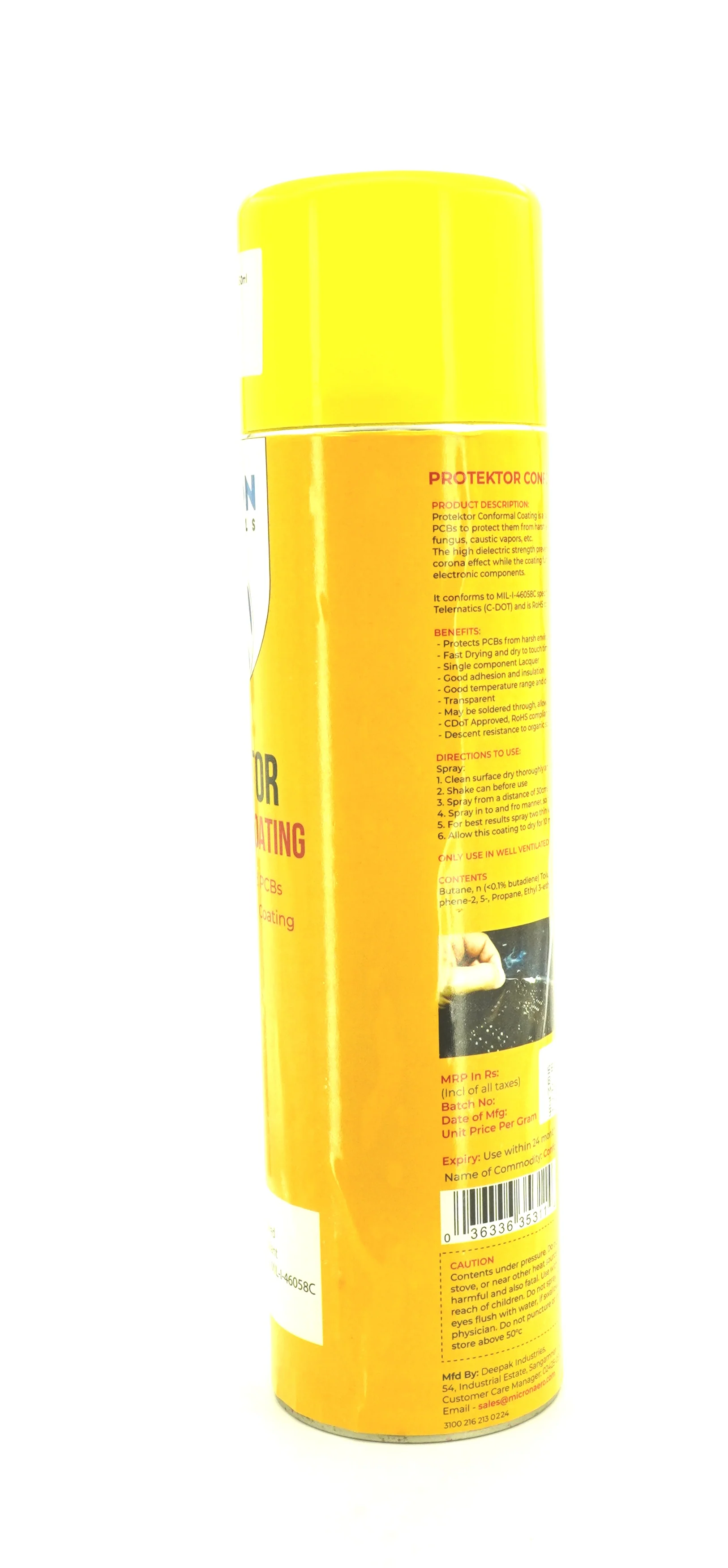

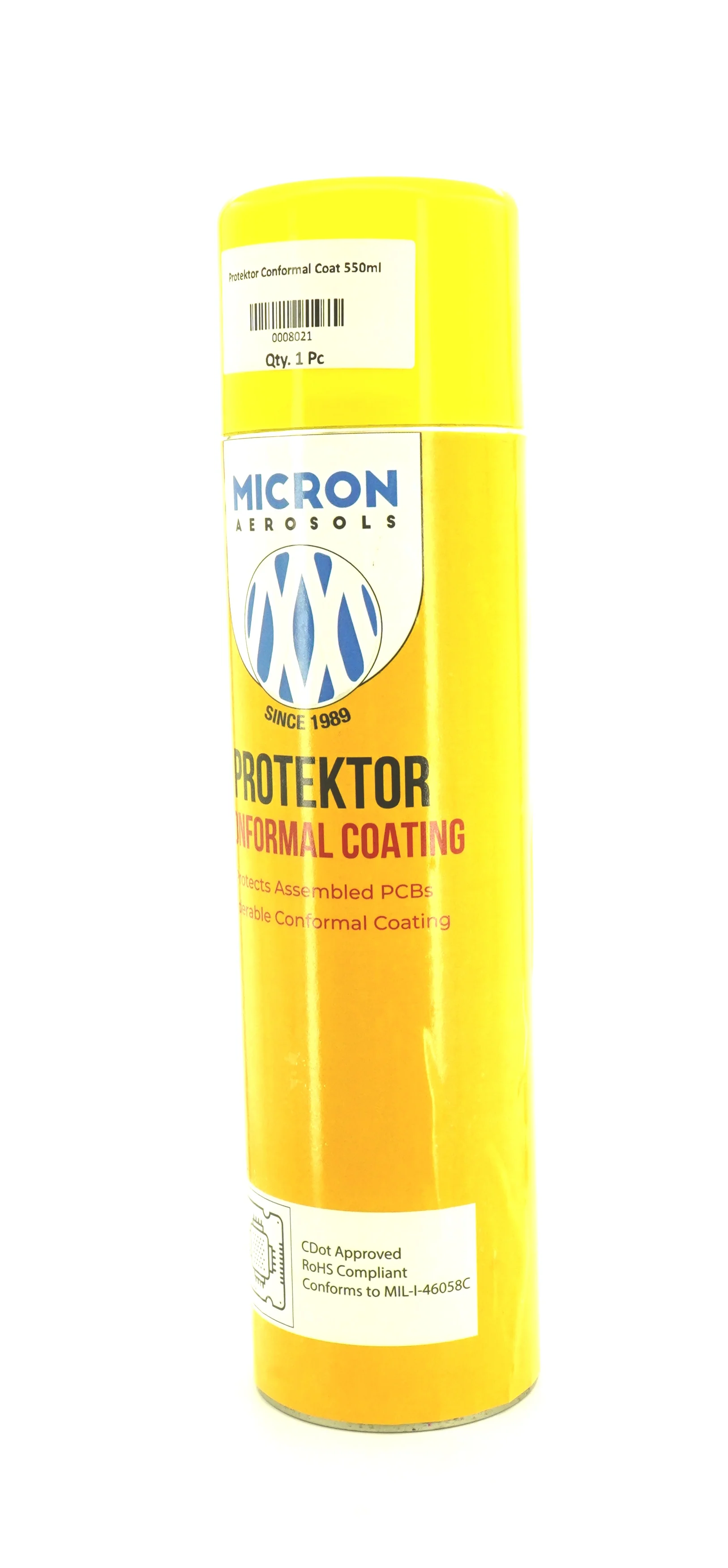

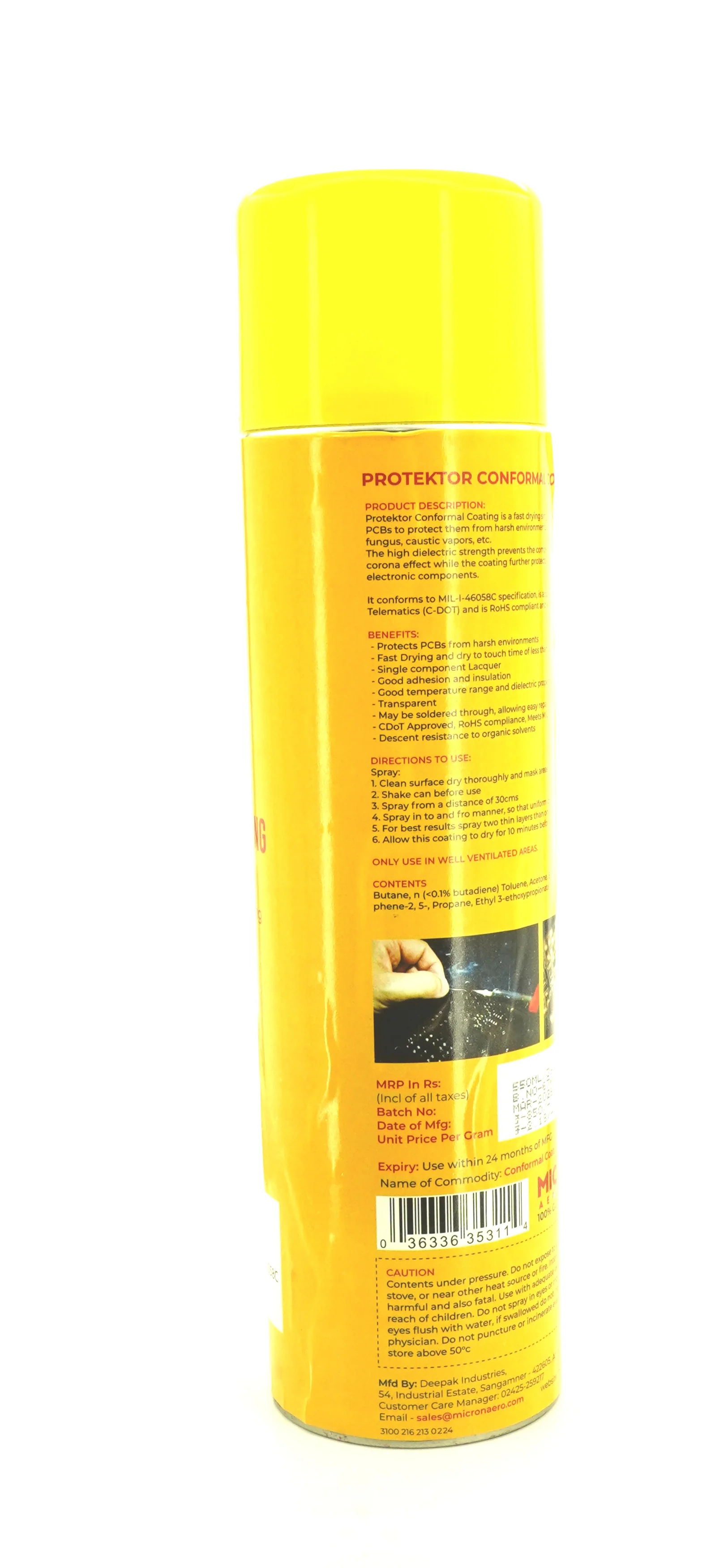

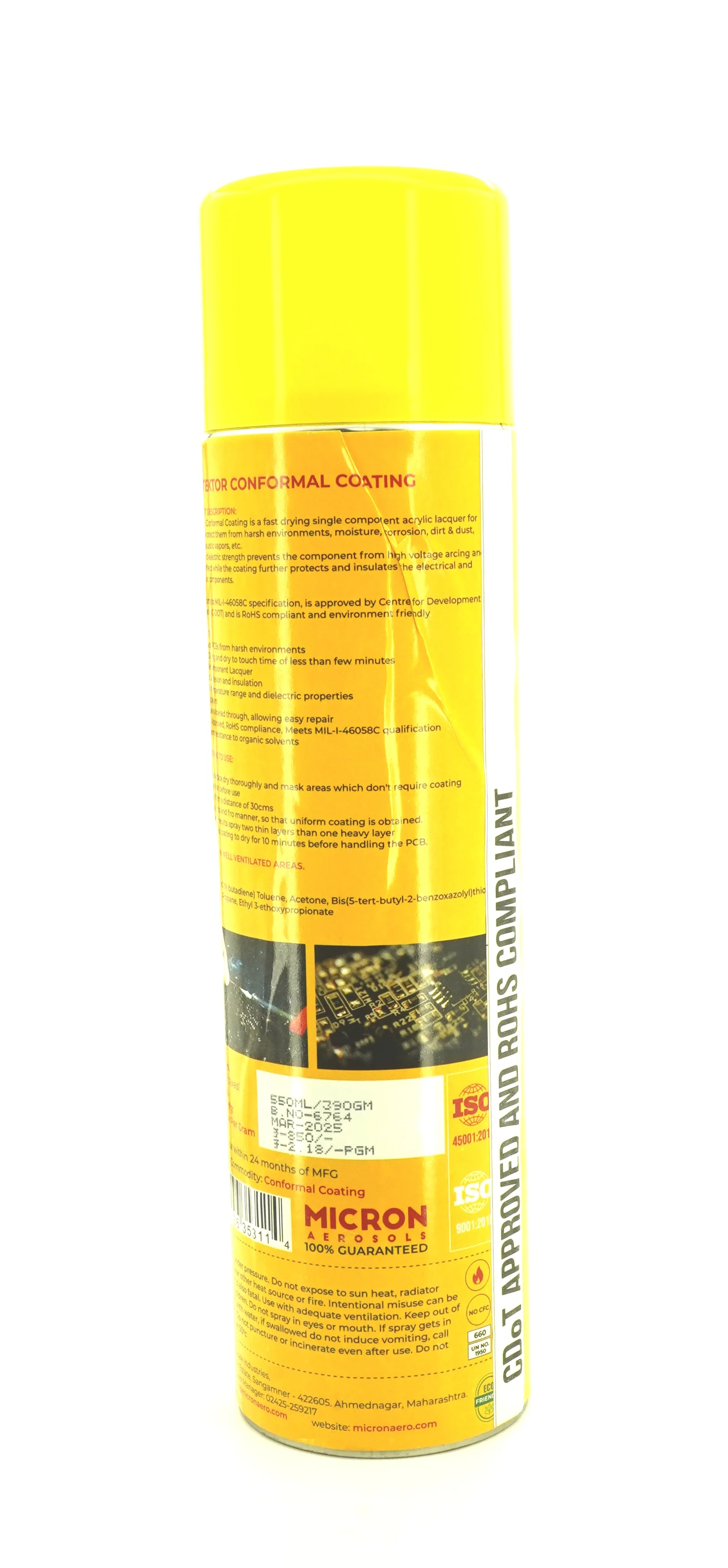

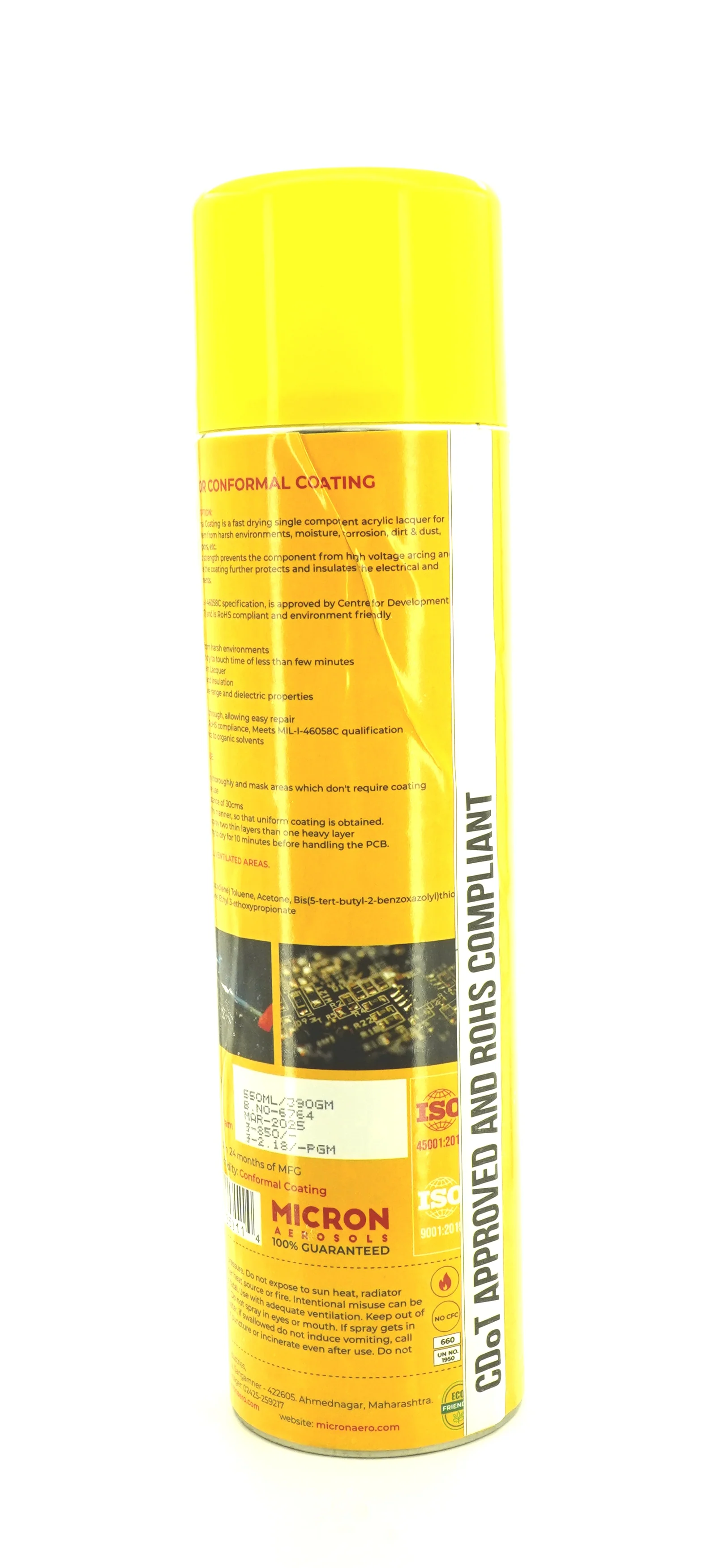

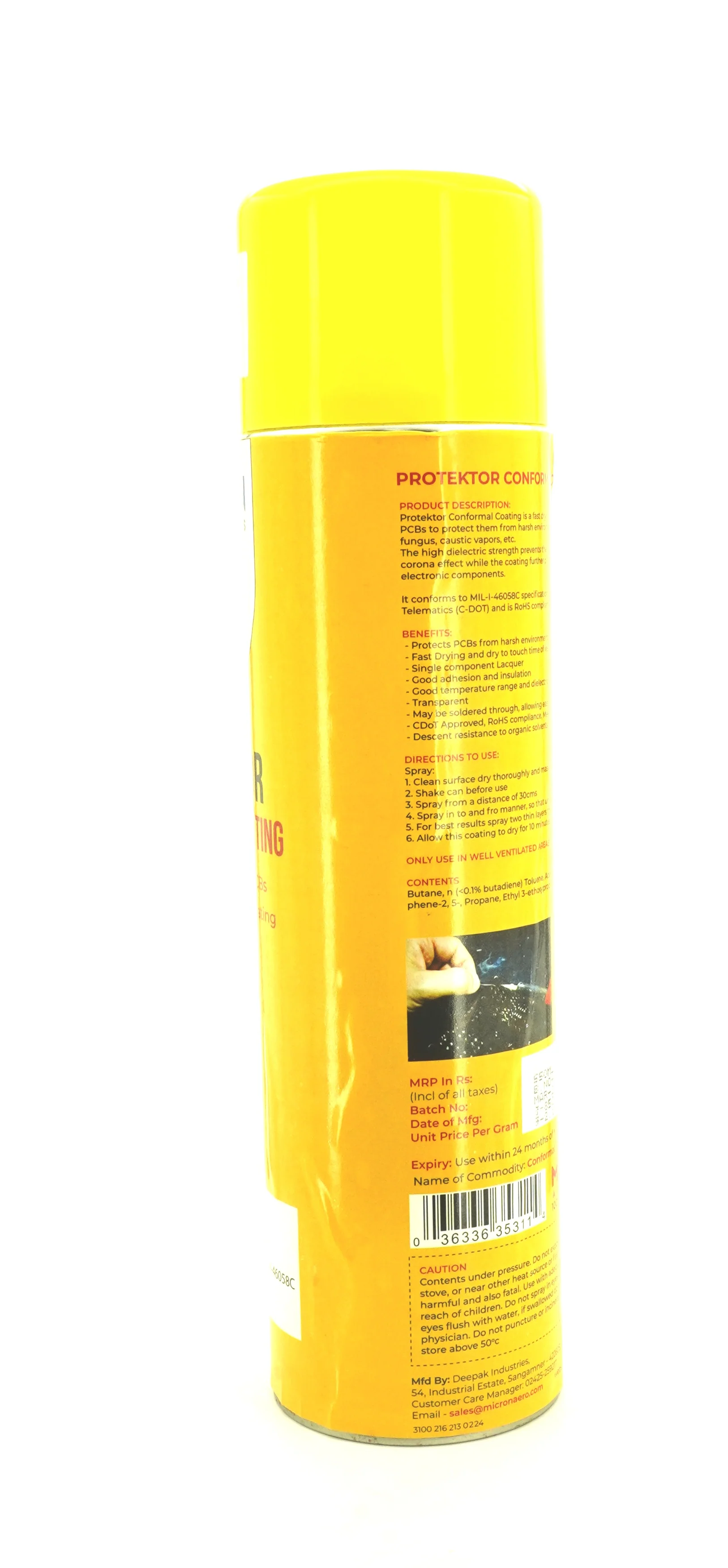

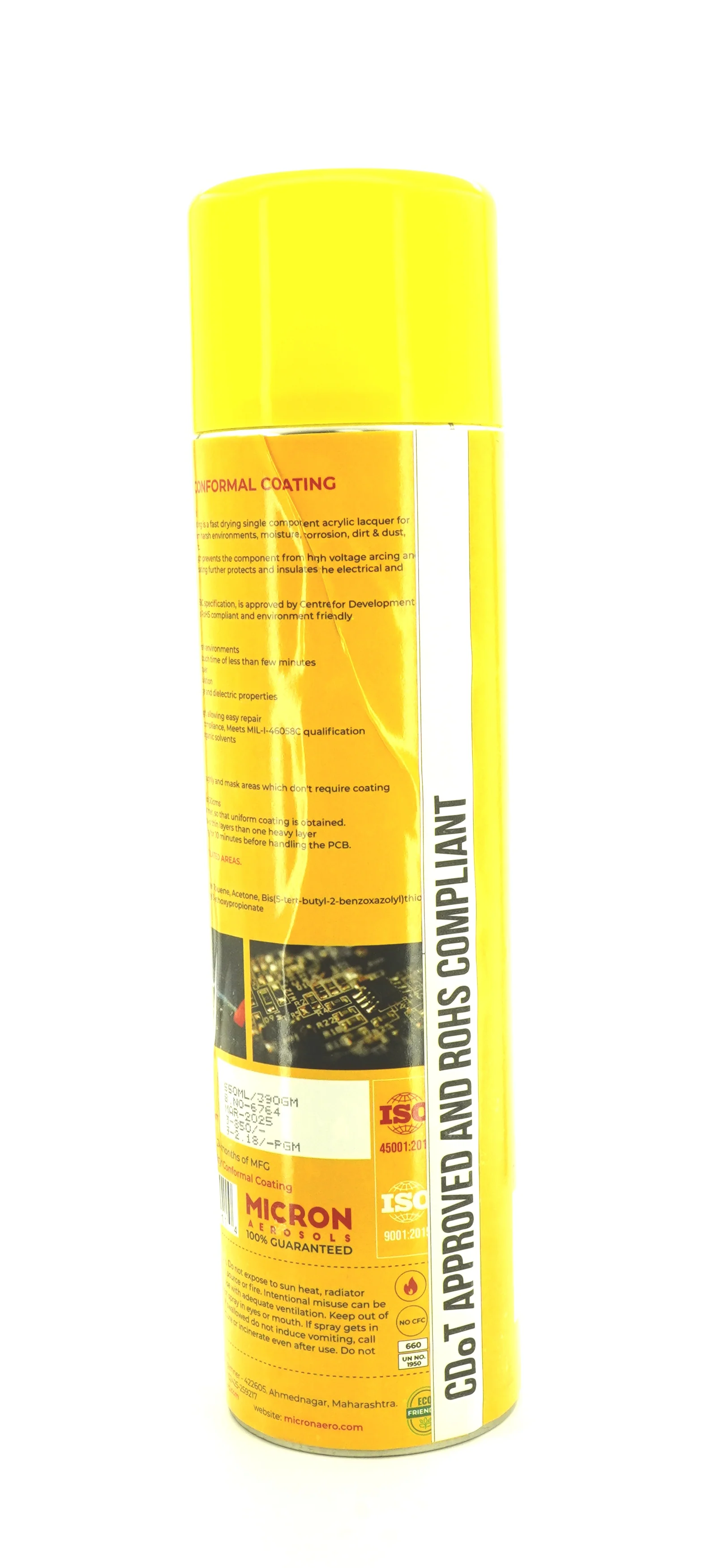

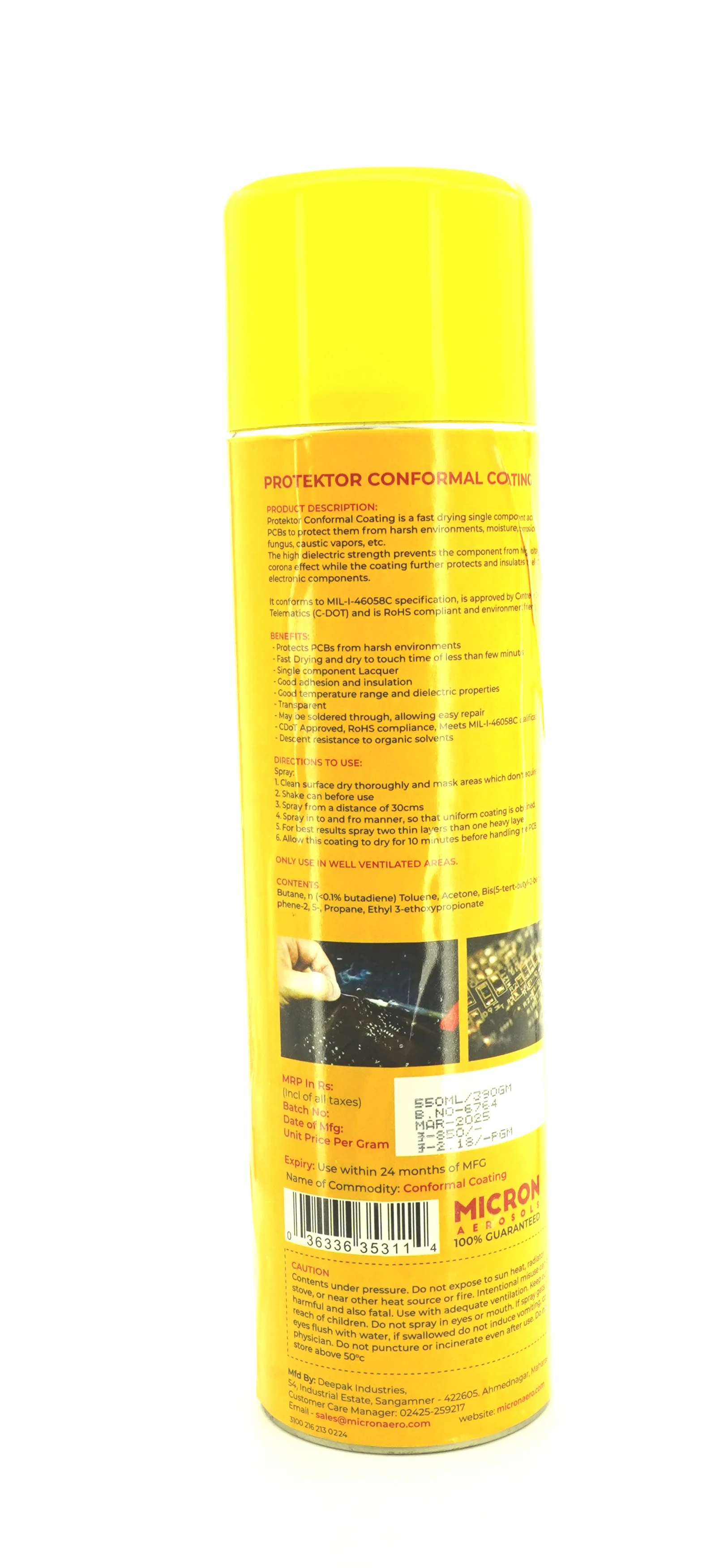

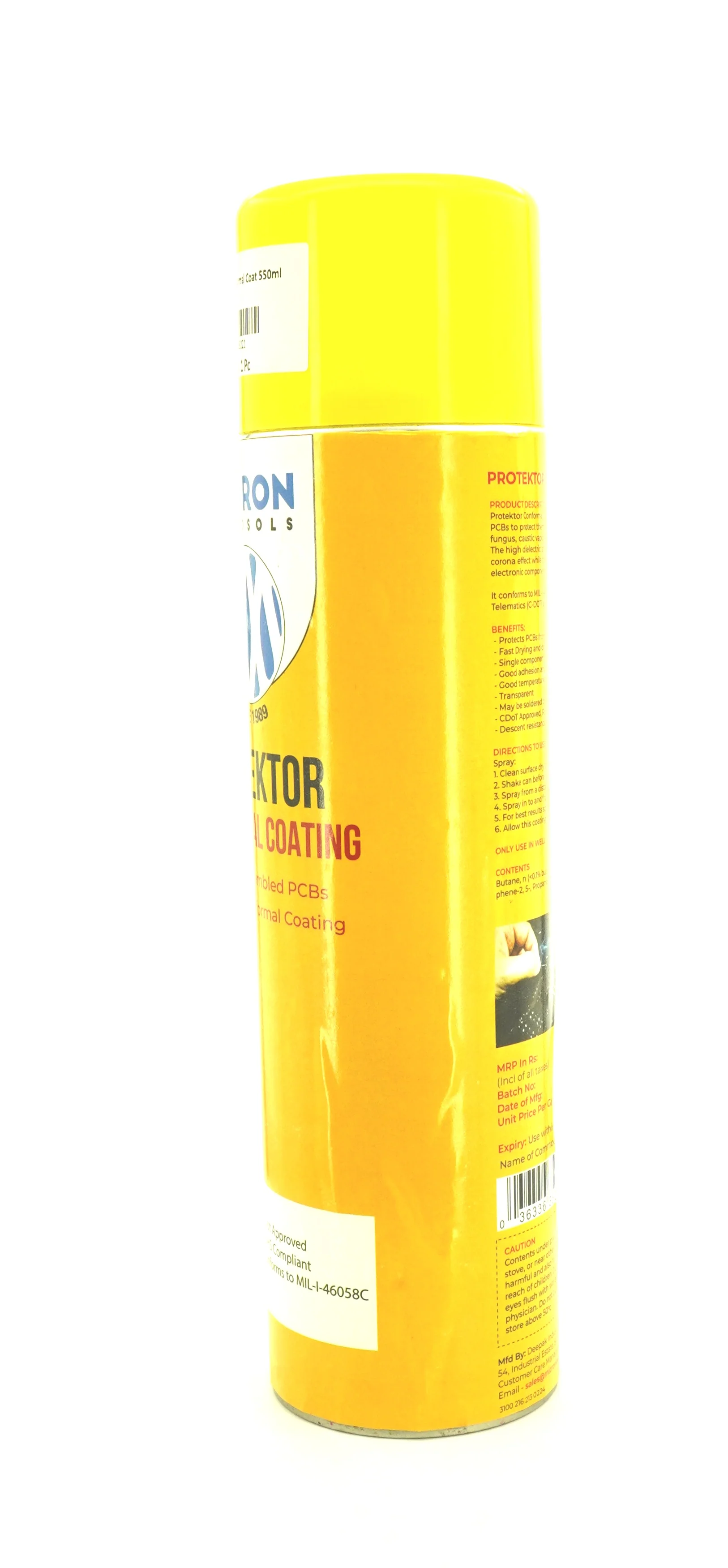

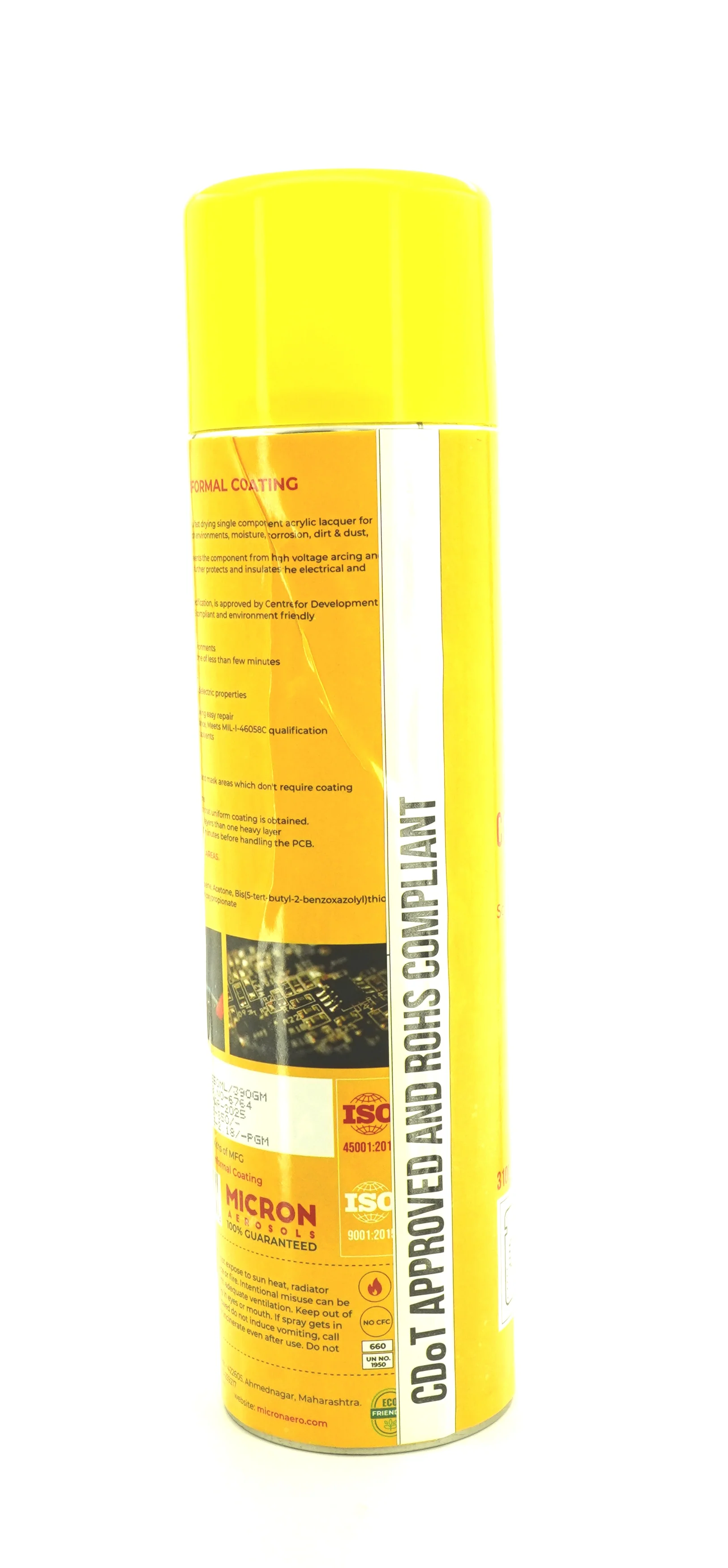

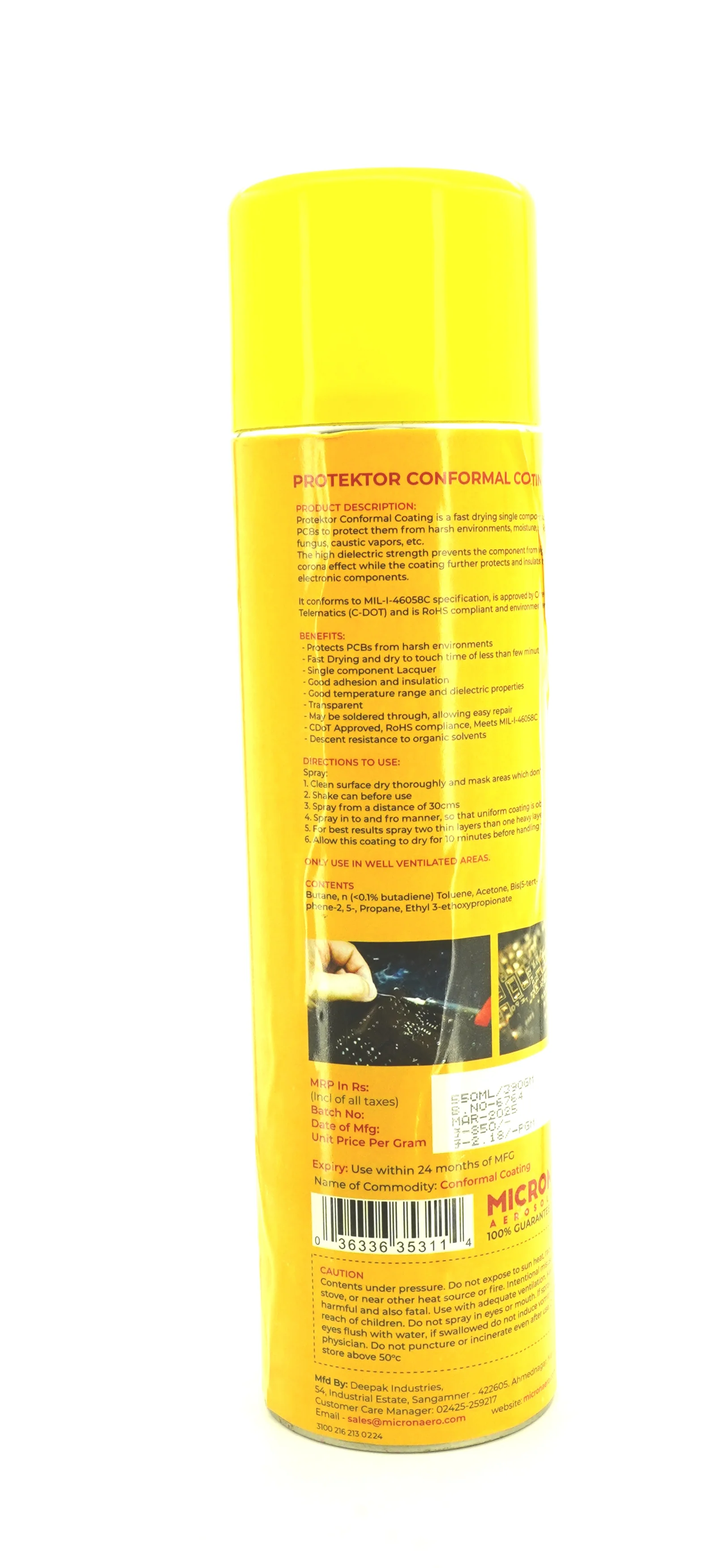

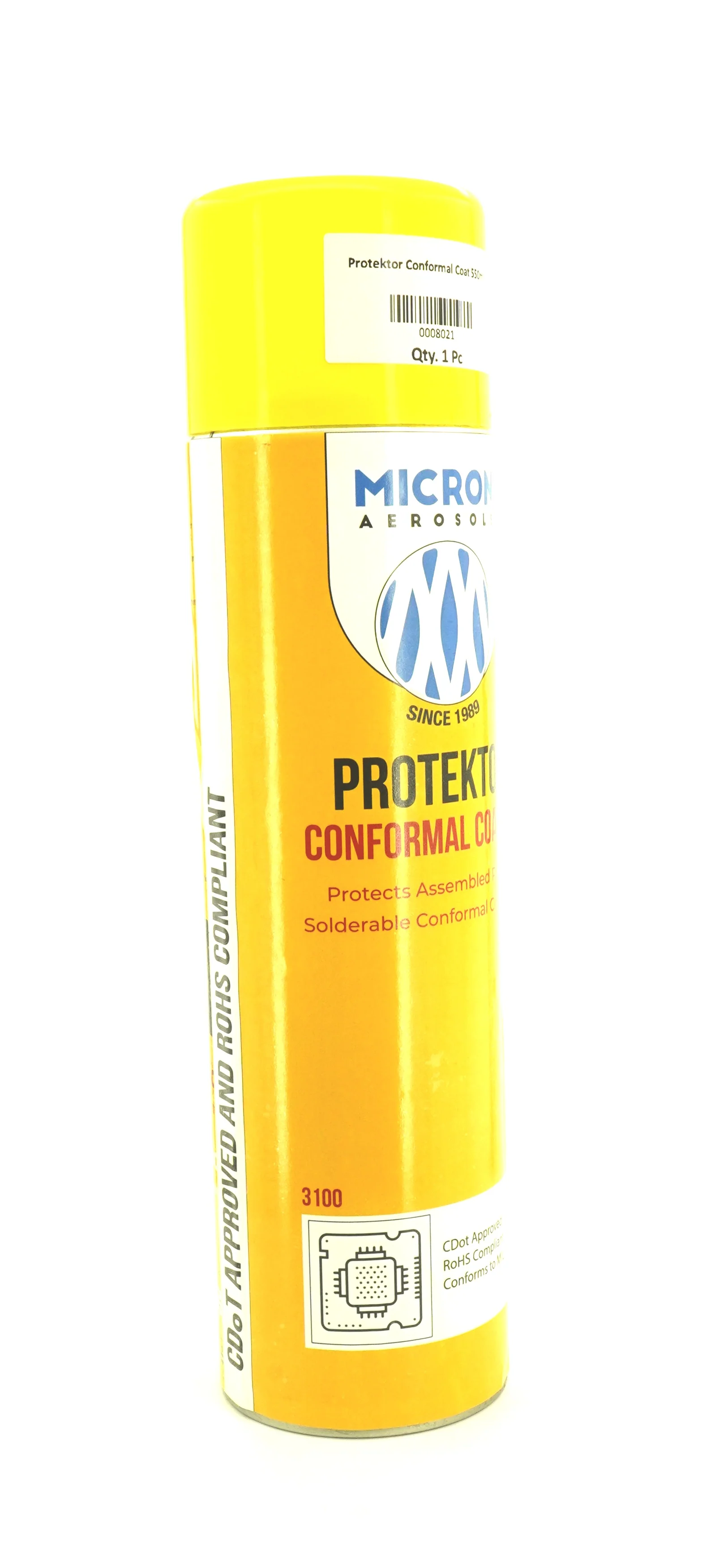

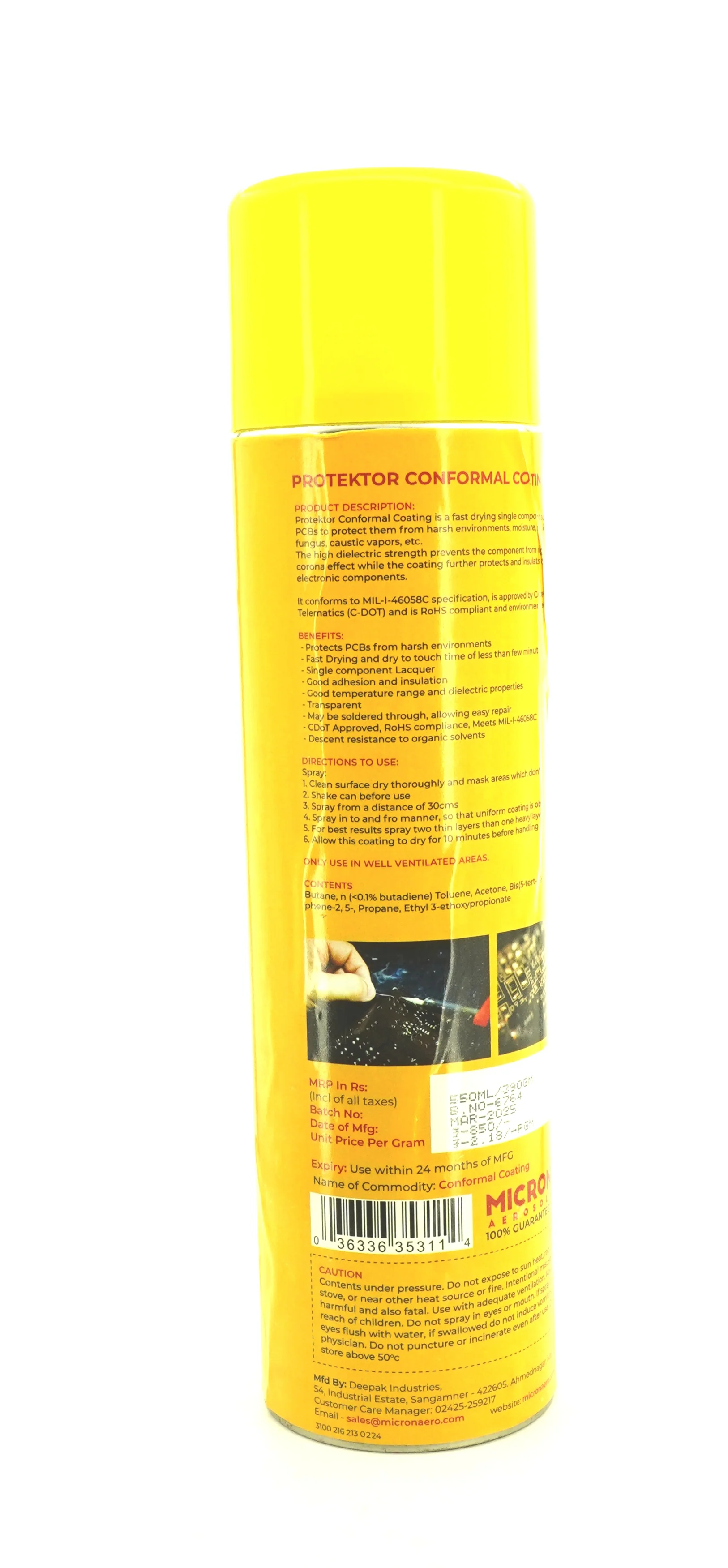

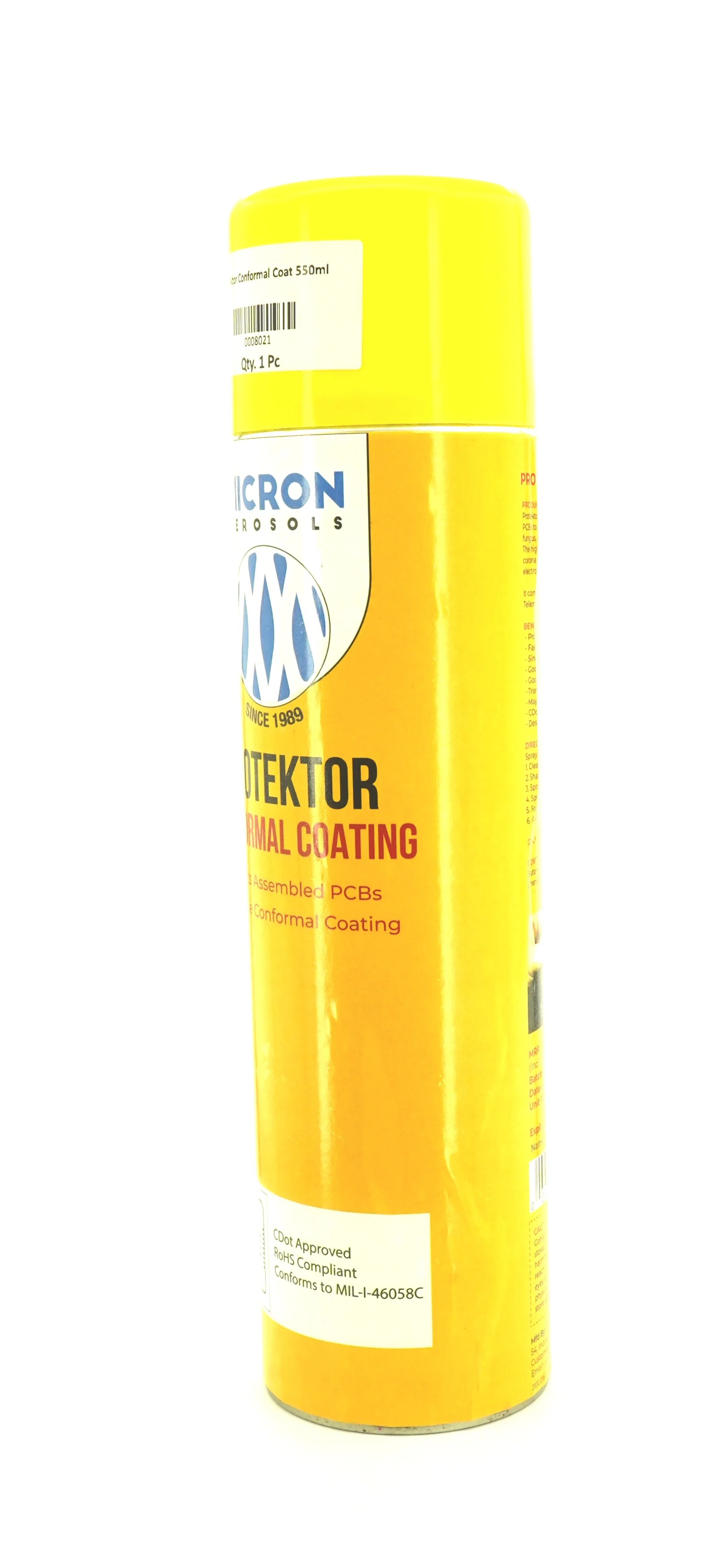

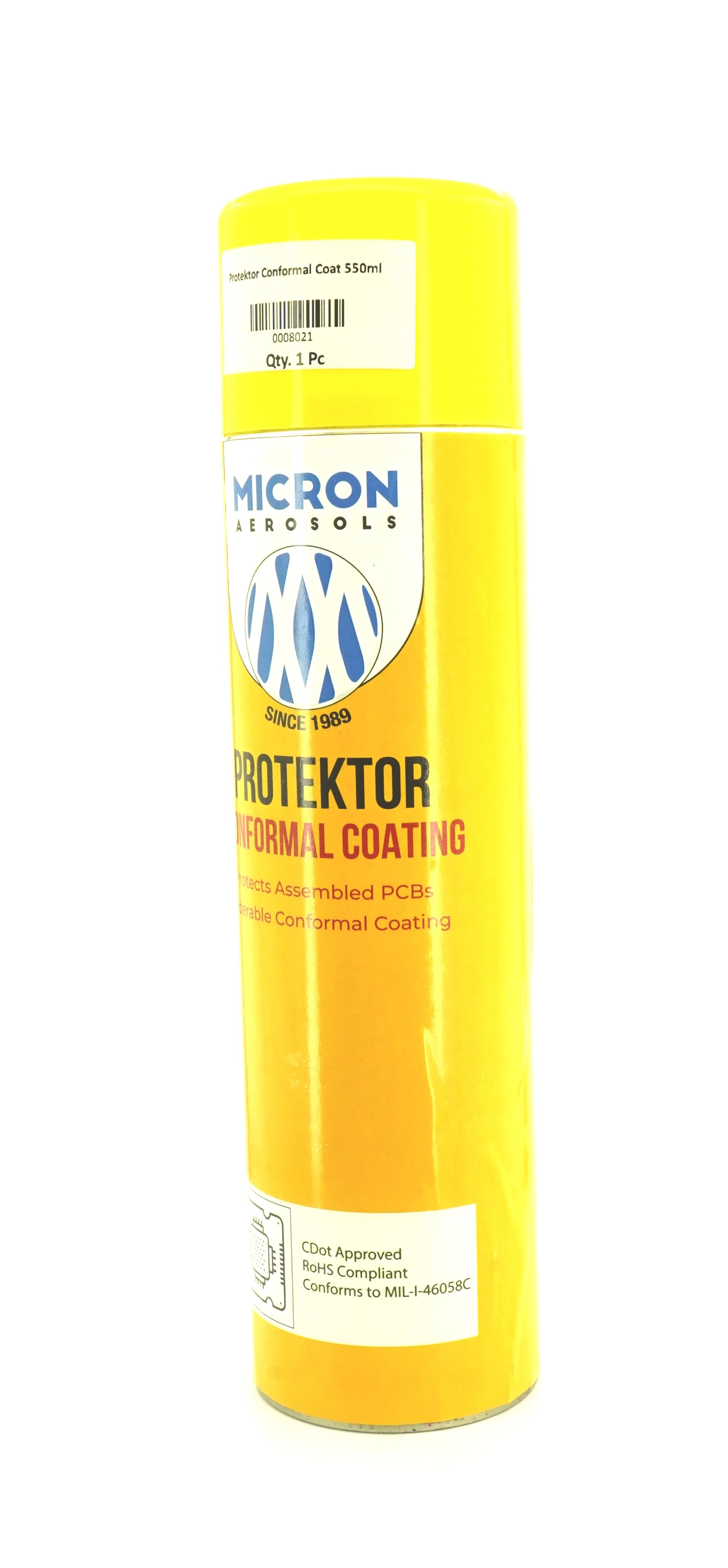

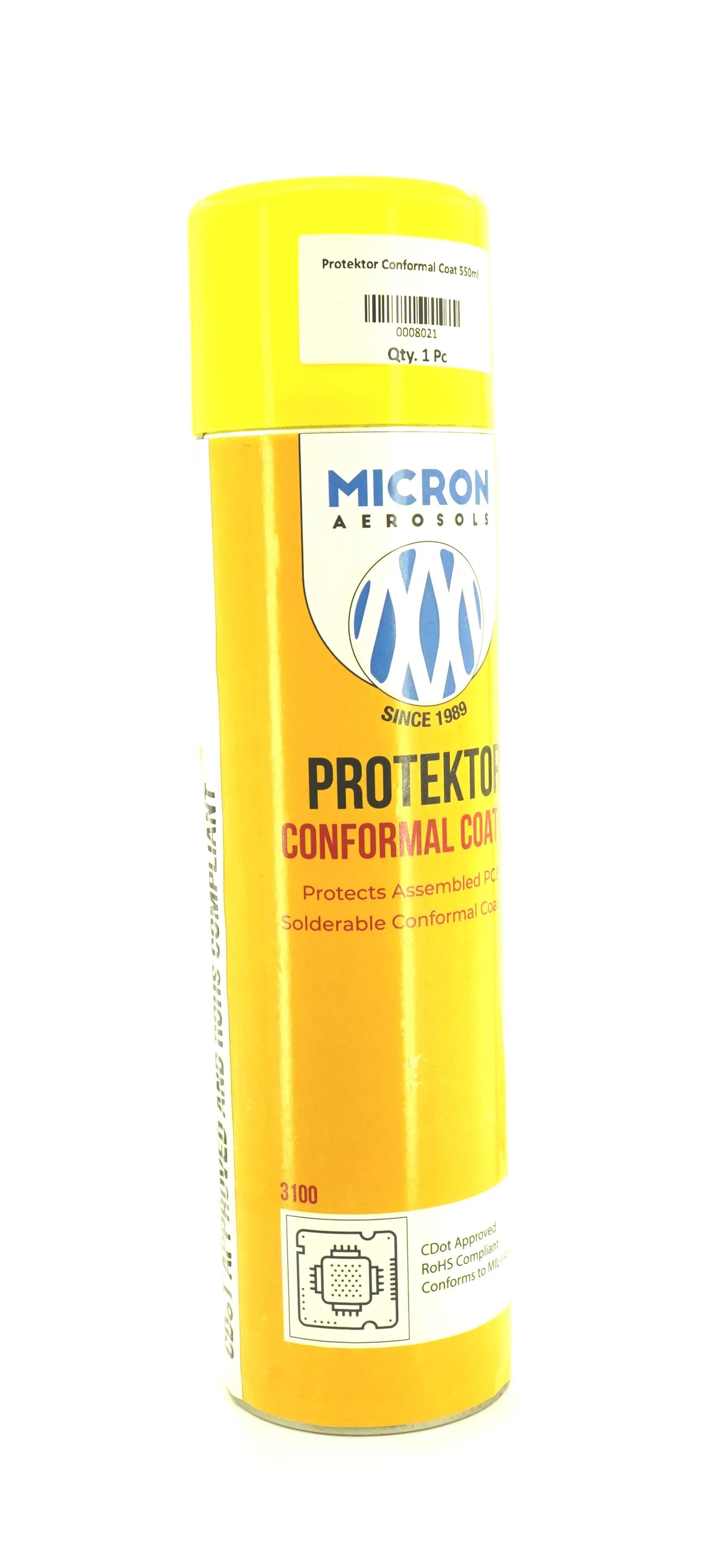

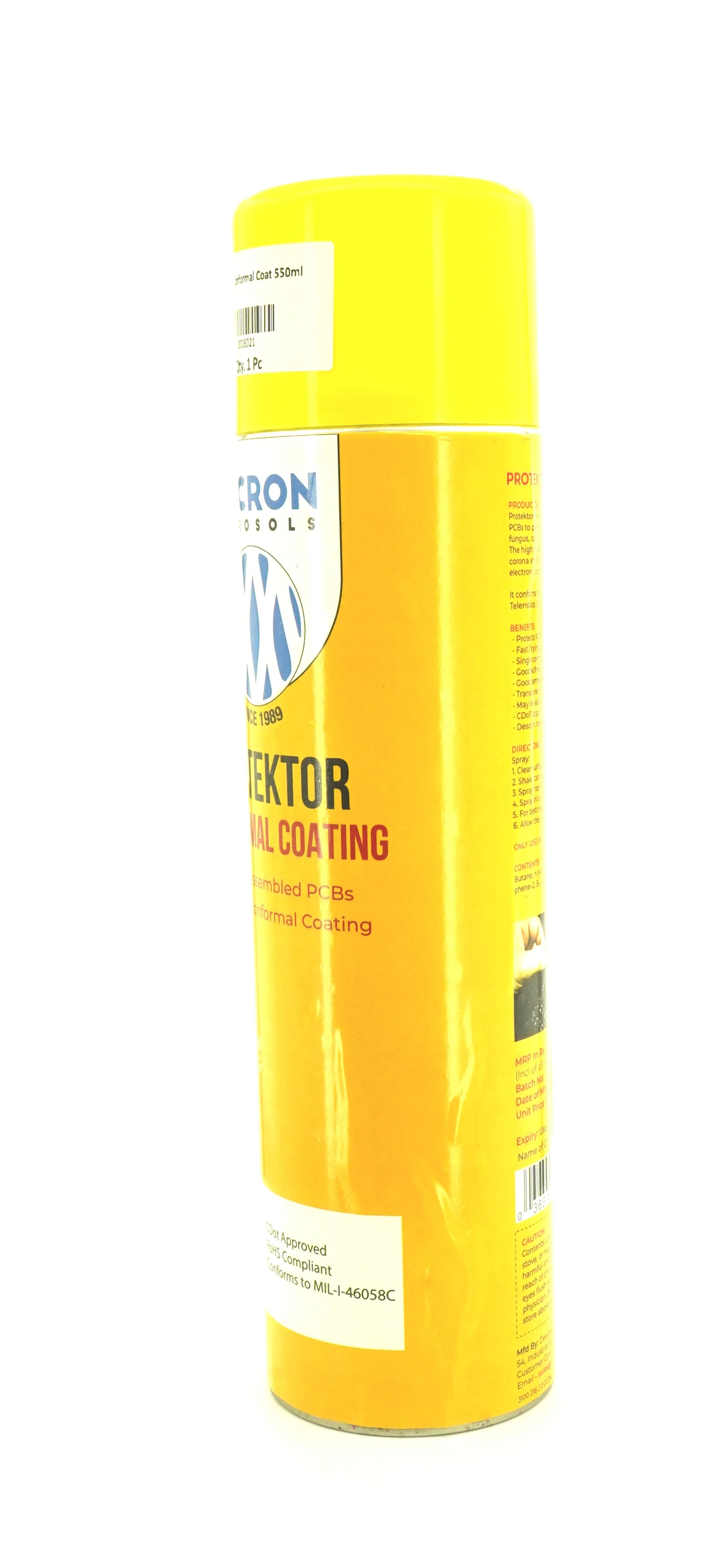

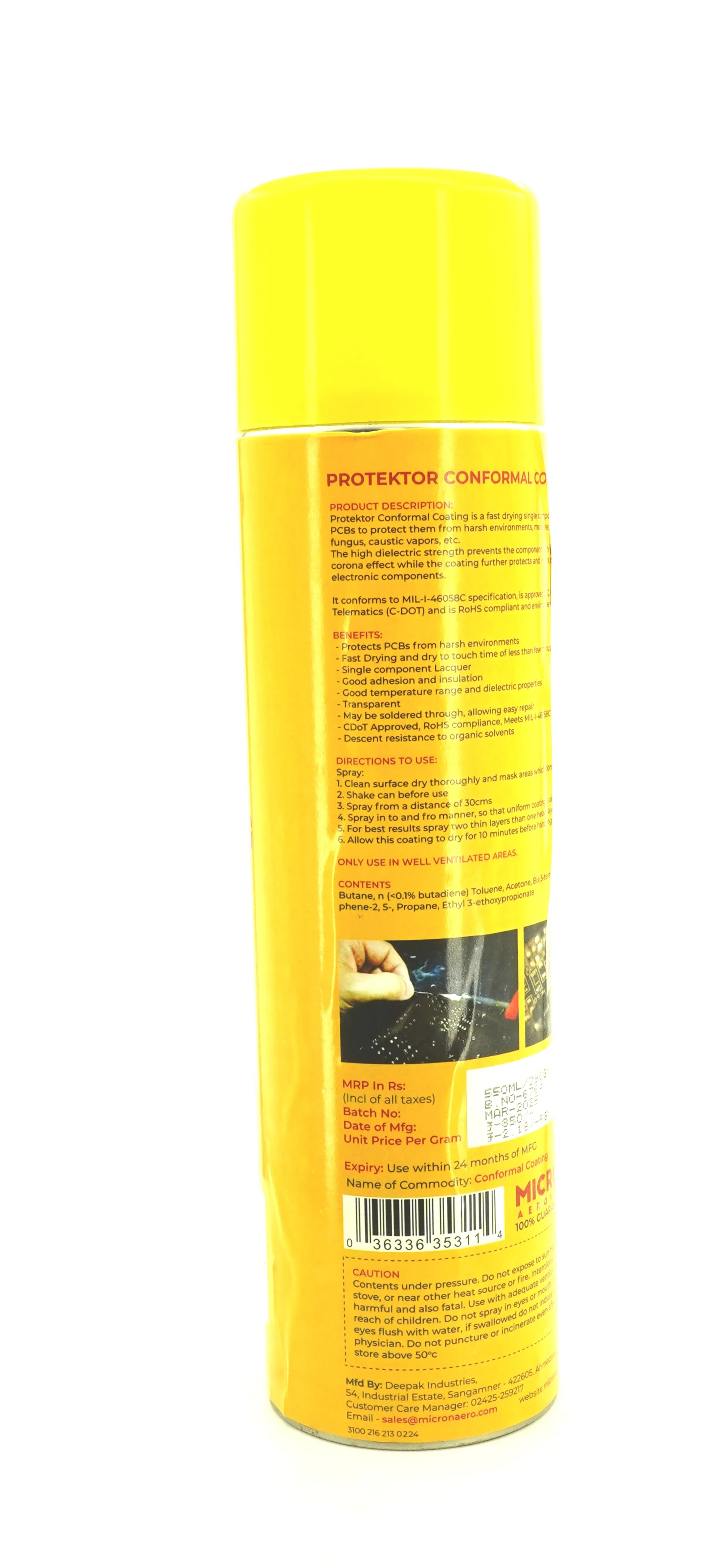

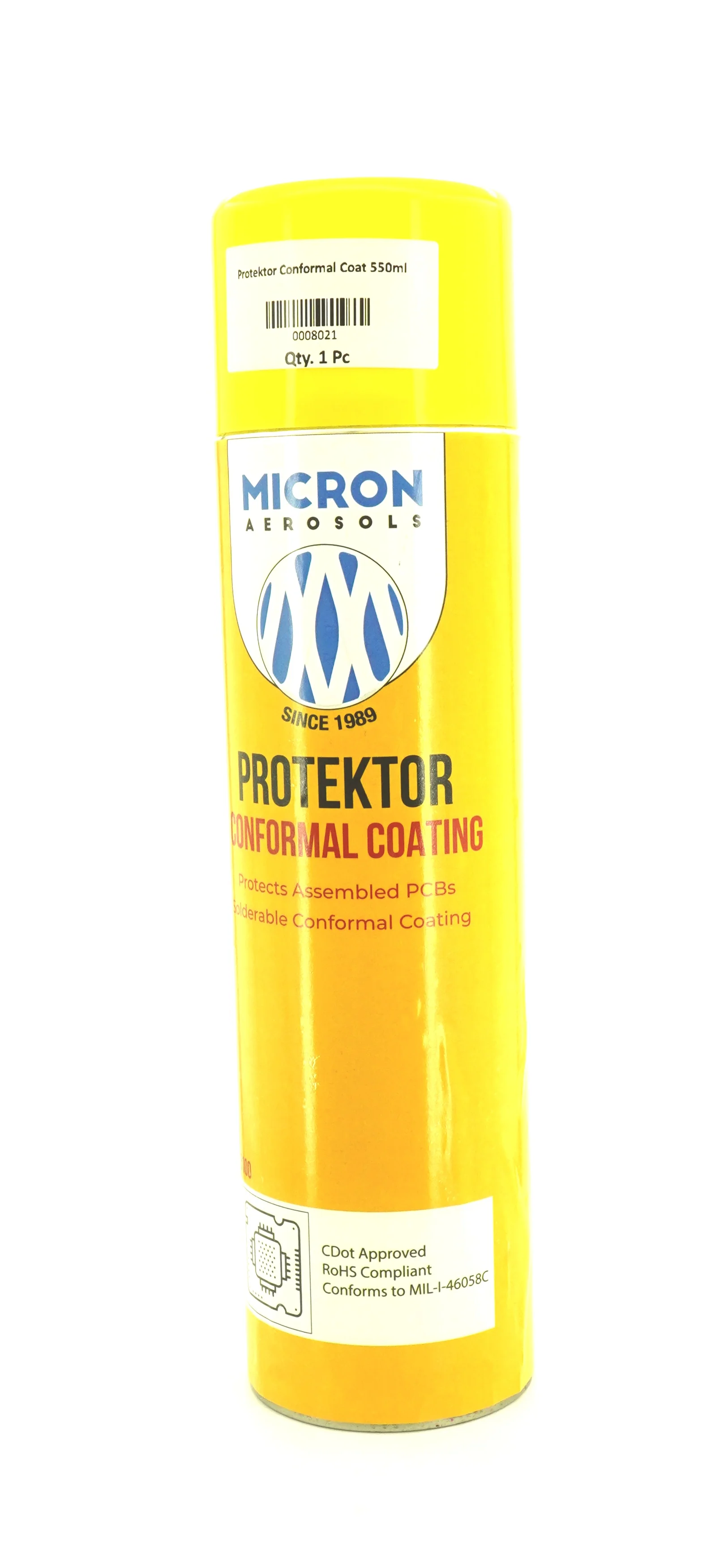

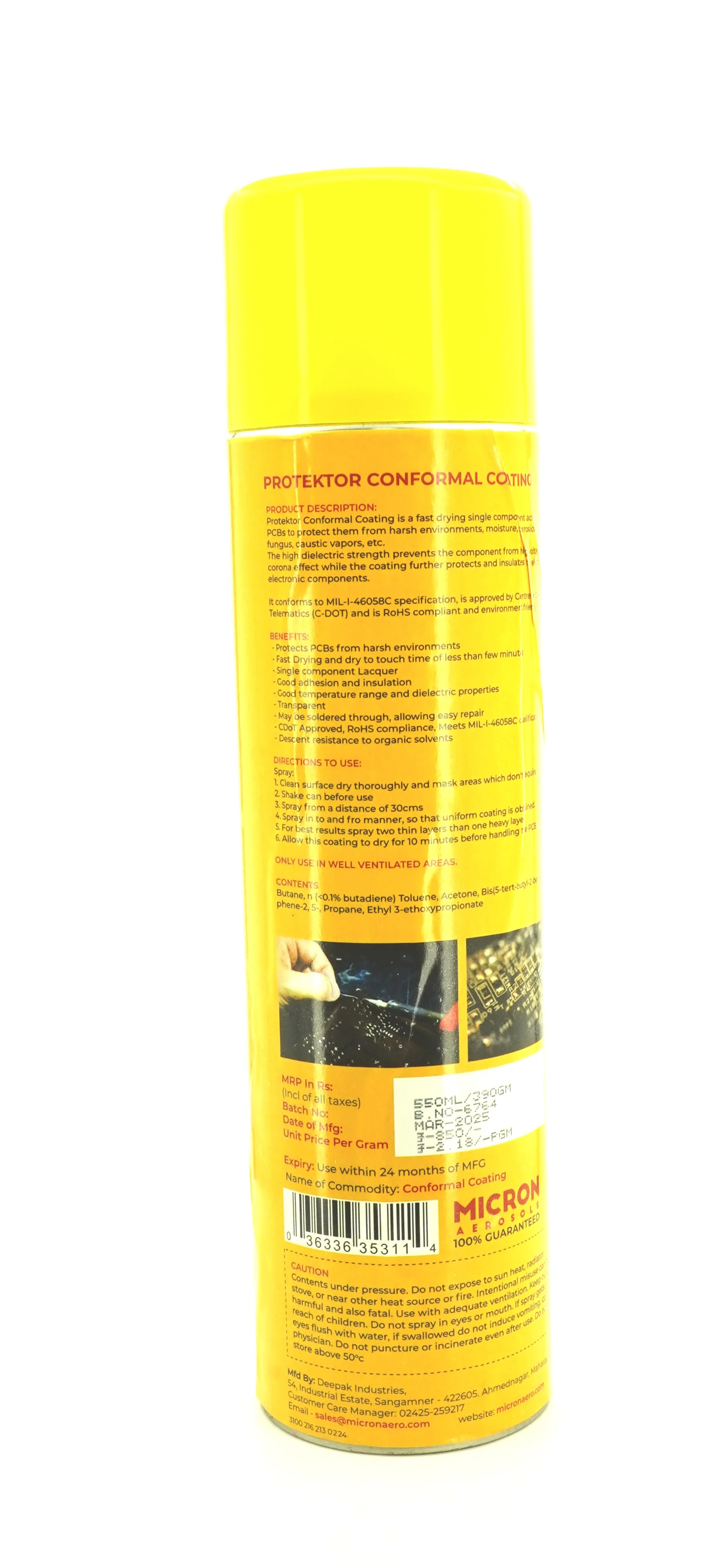

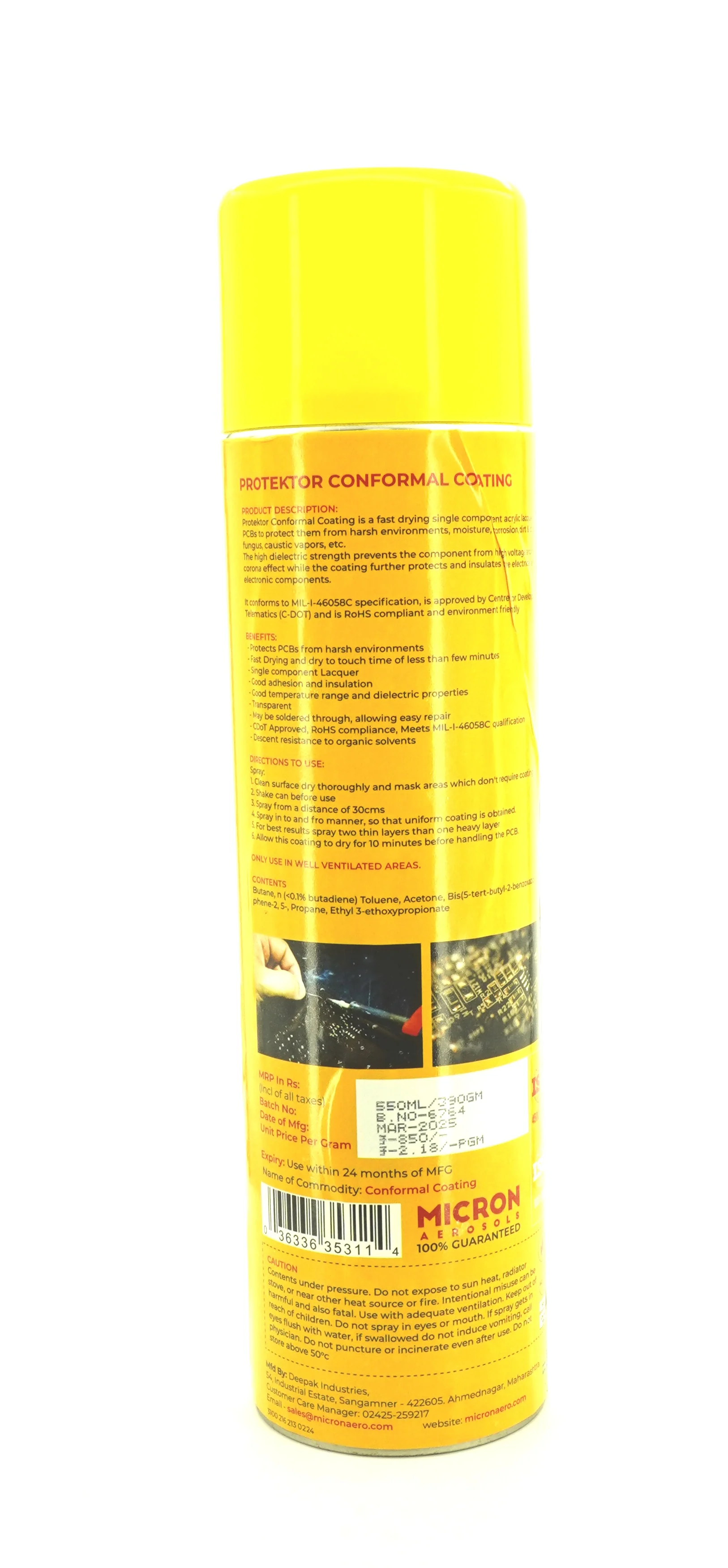

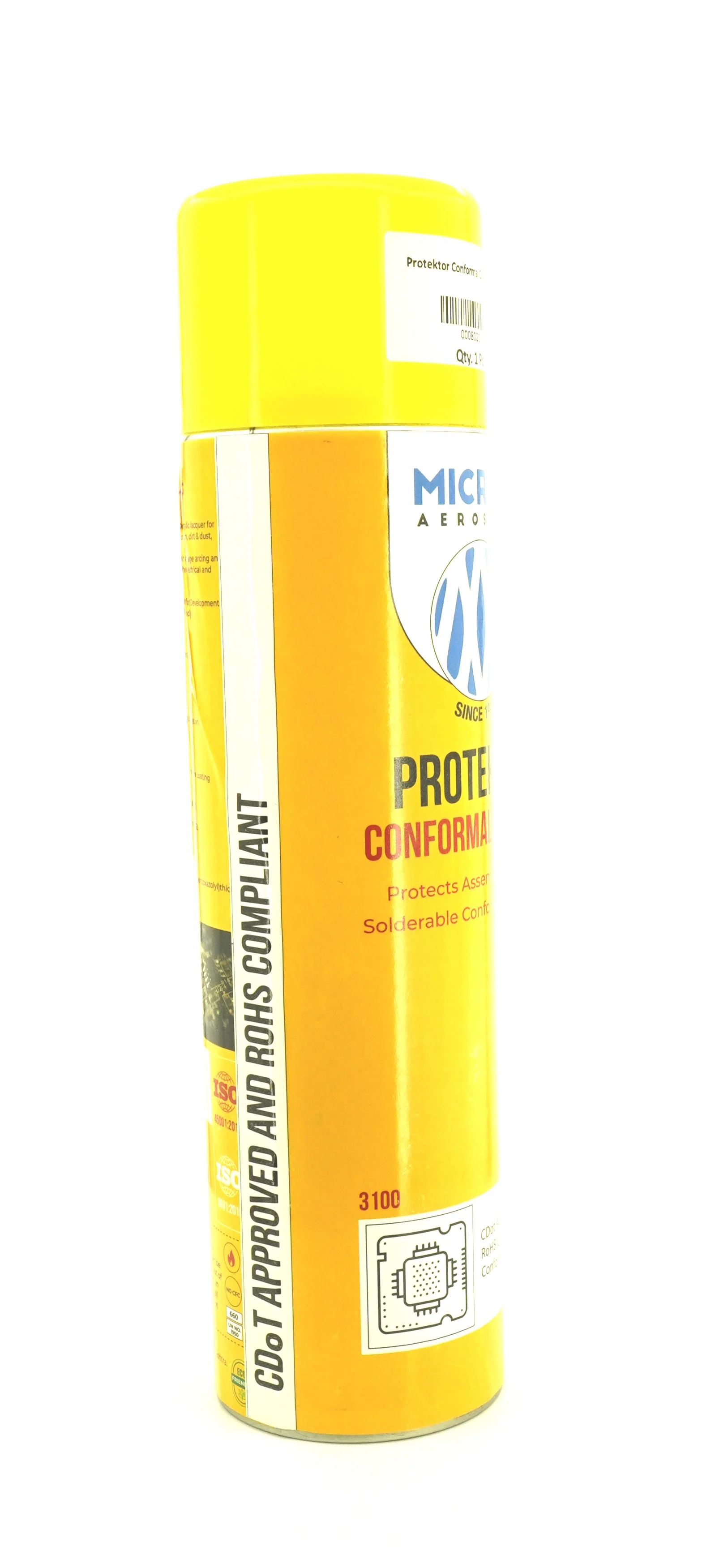

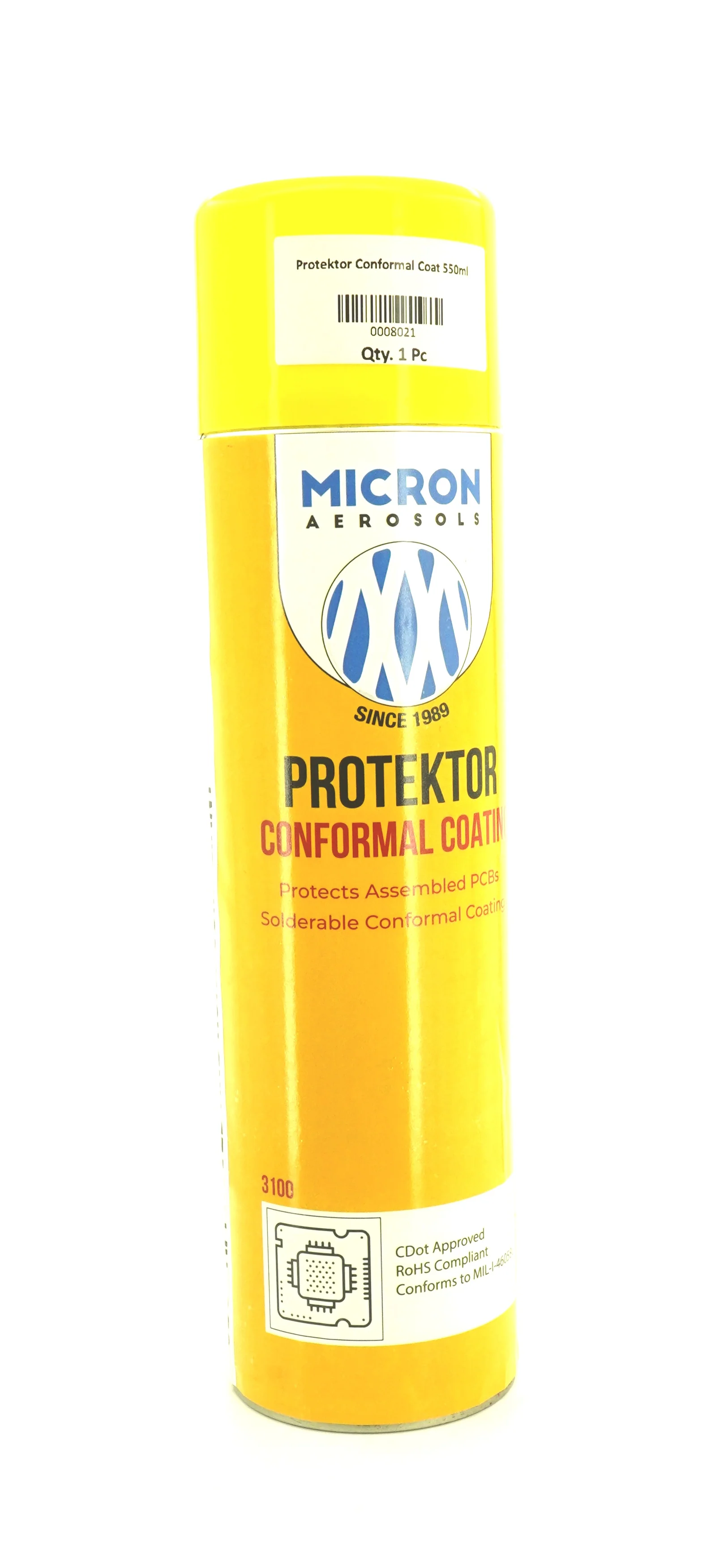

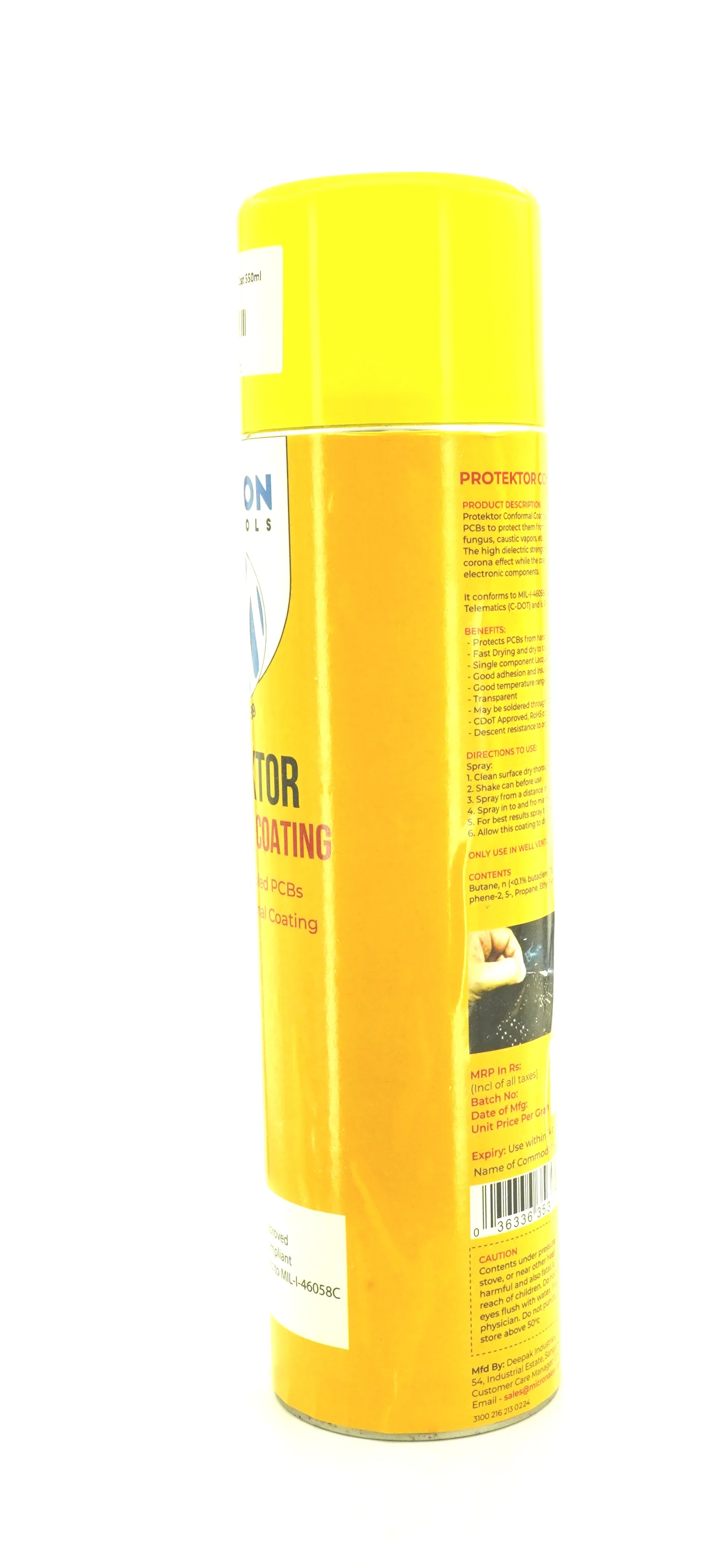

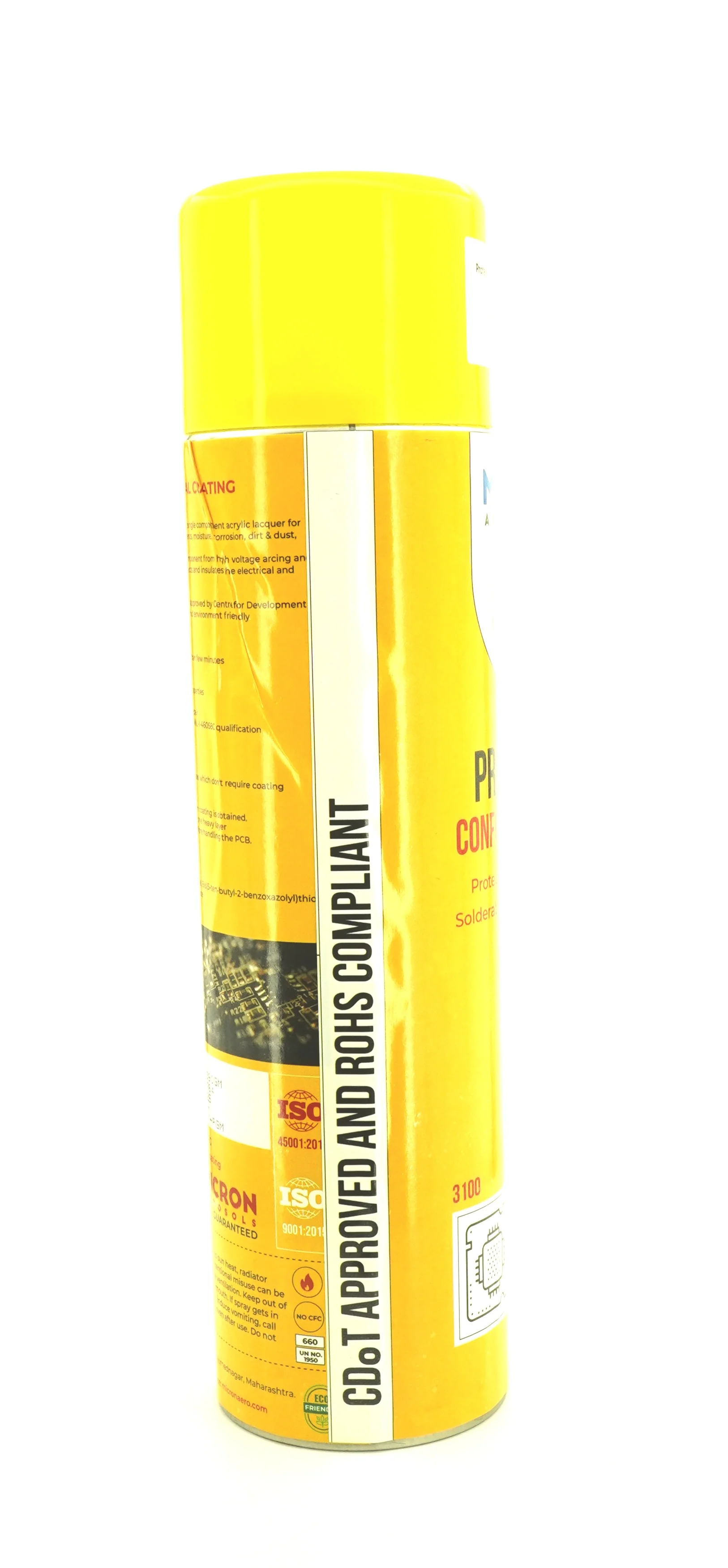

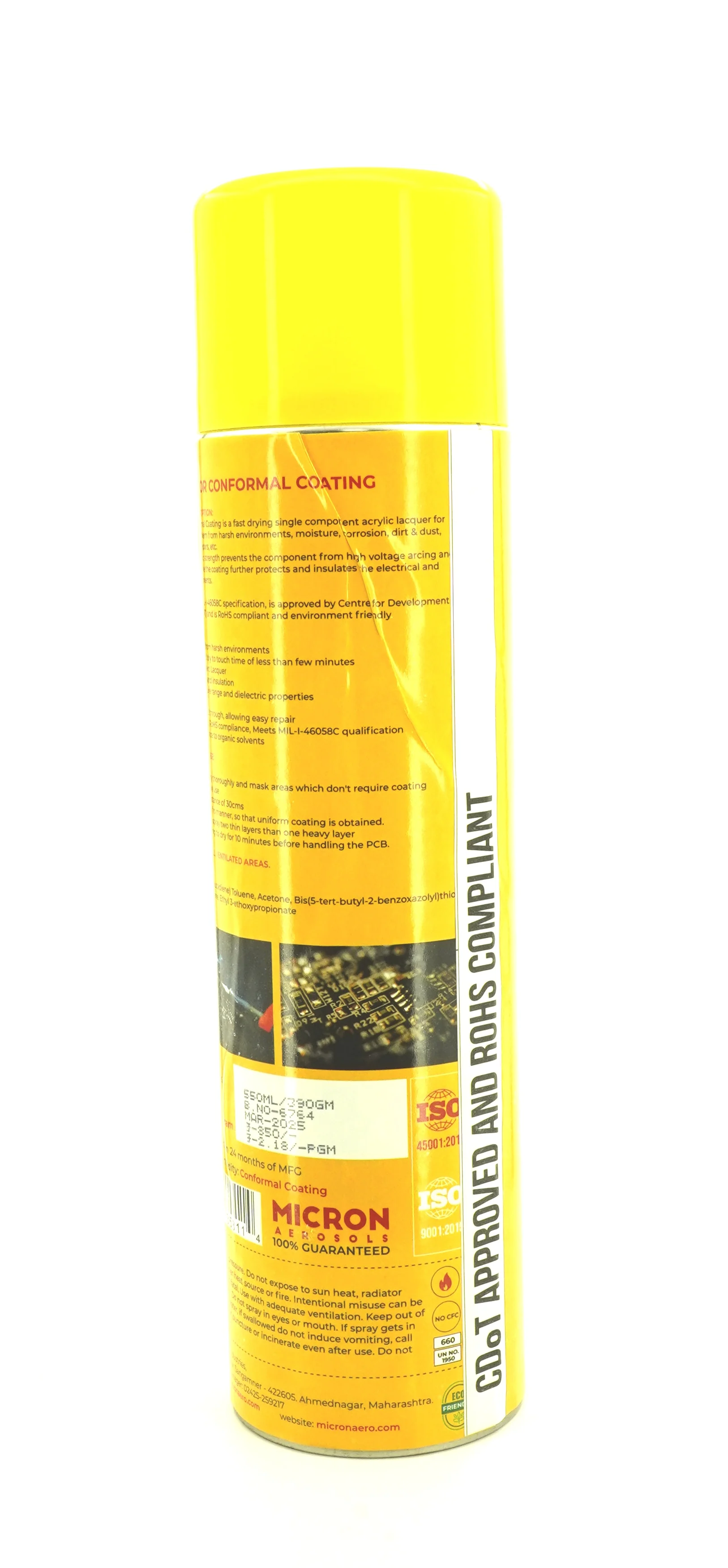

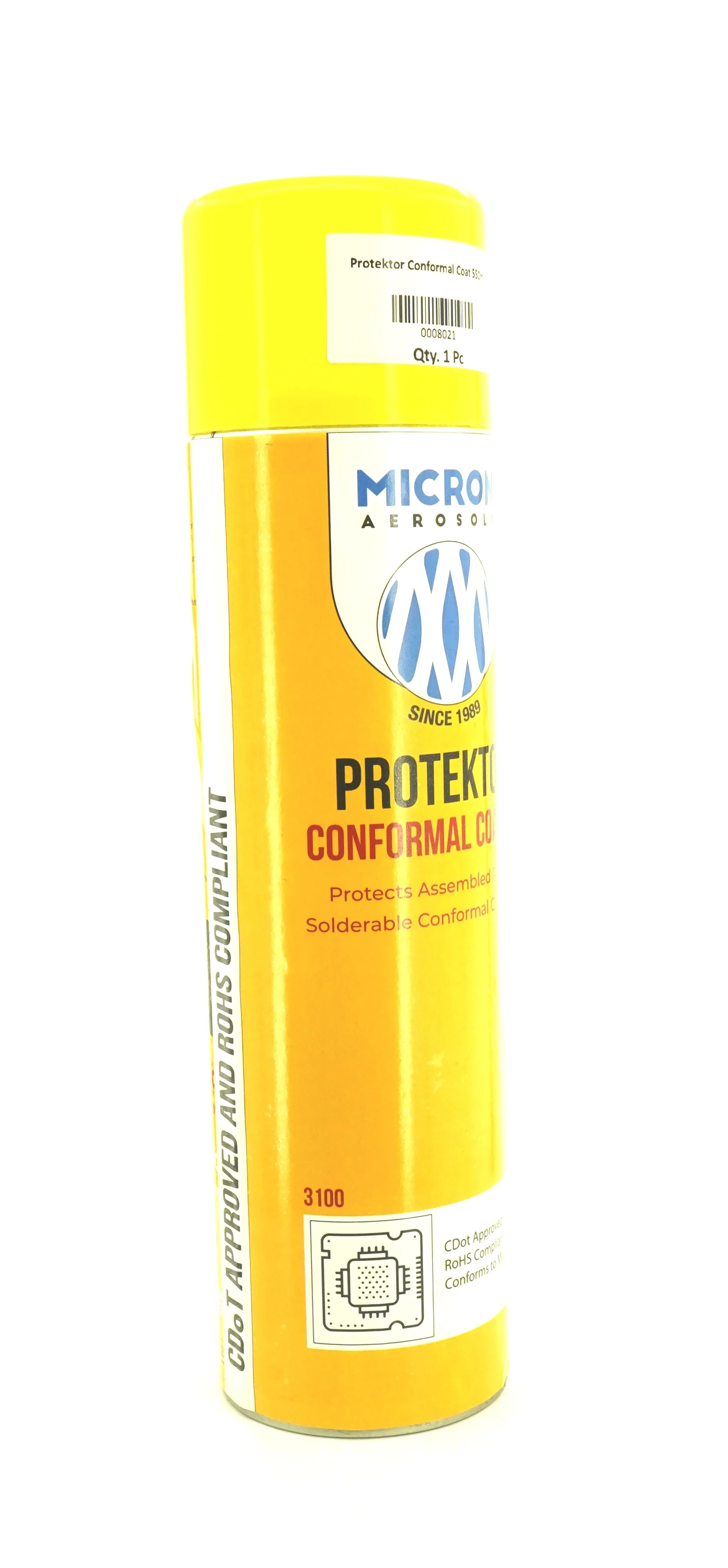

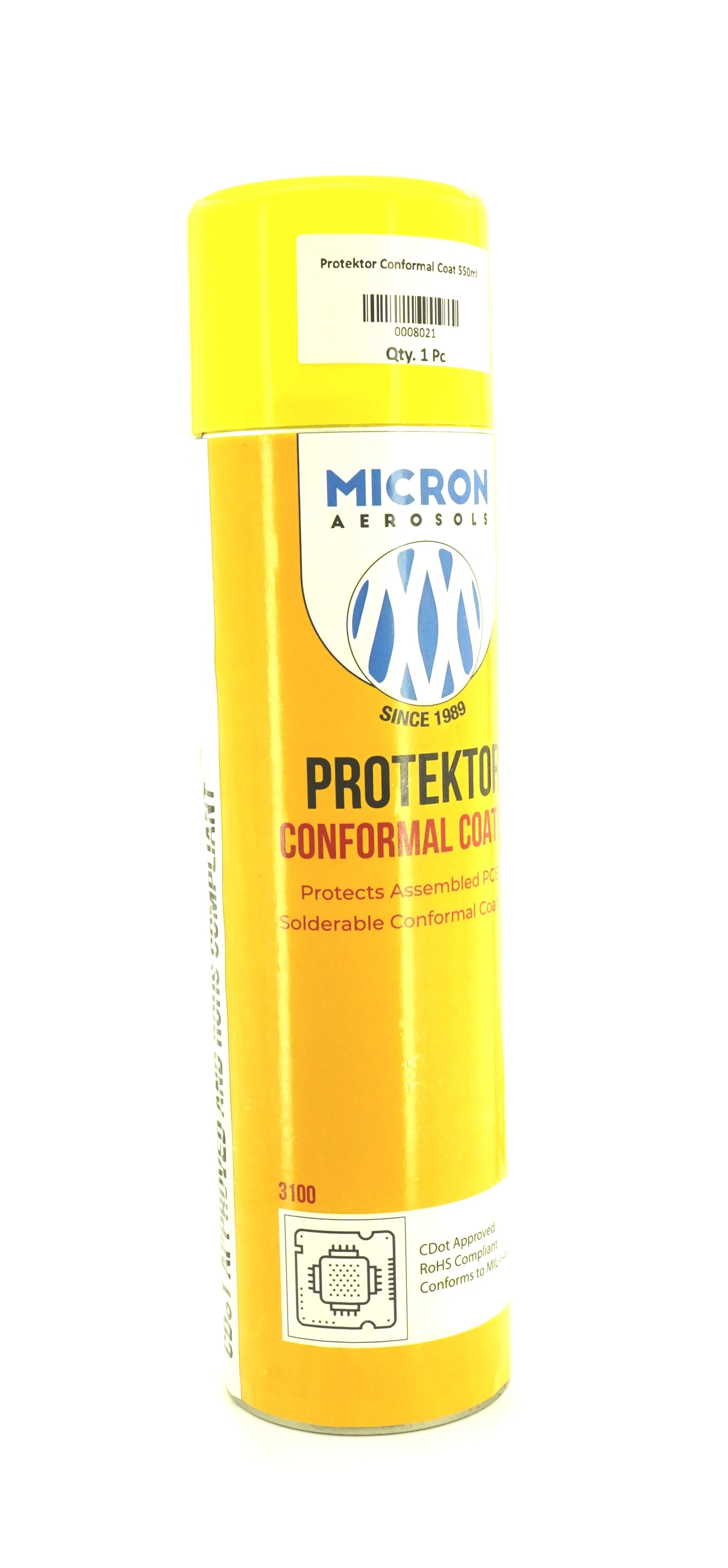

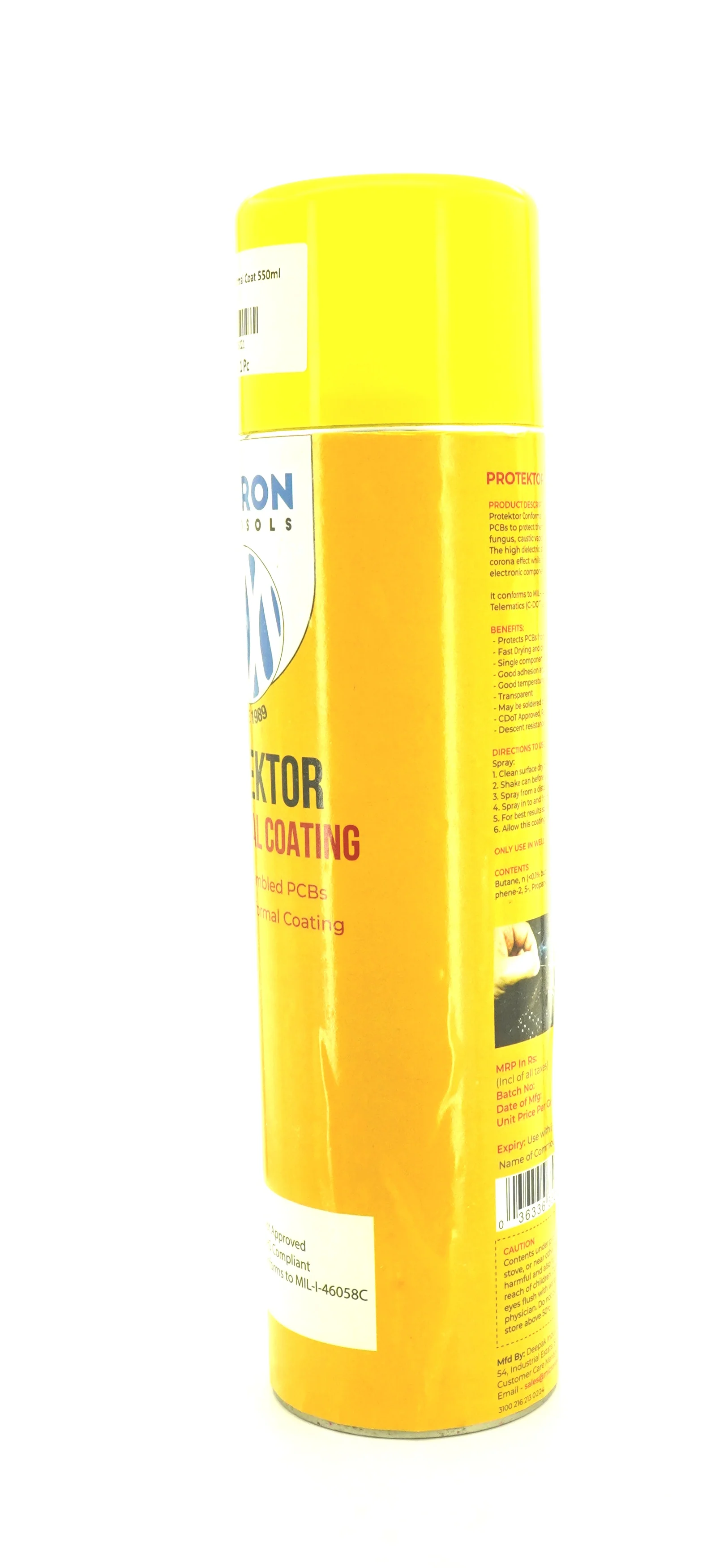

• 550ml Aerosol Spray Can
