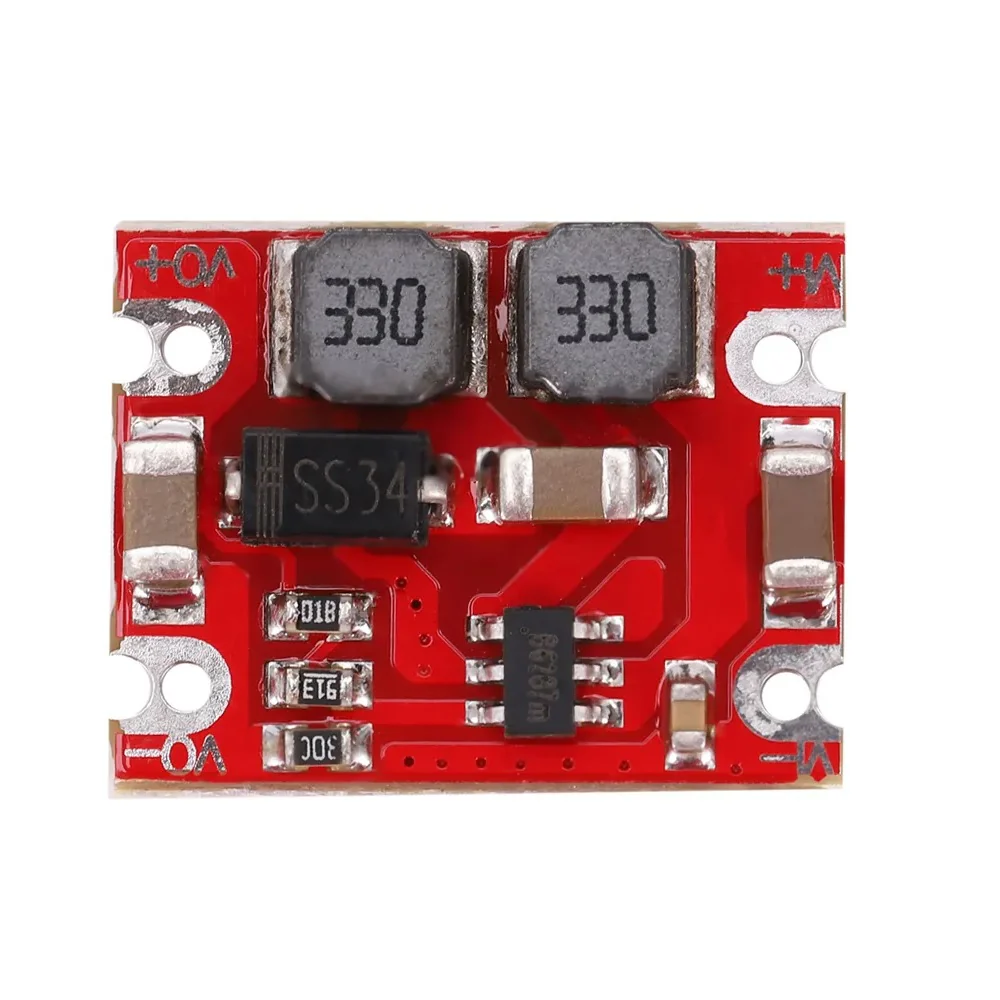

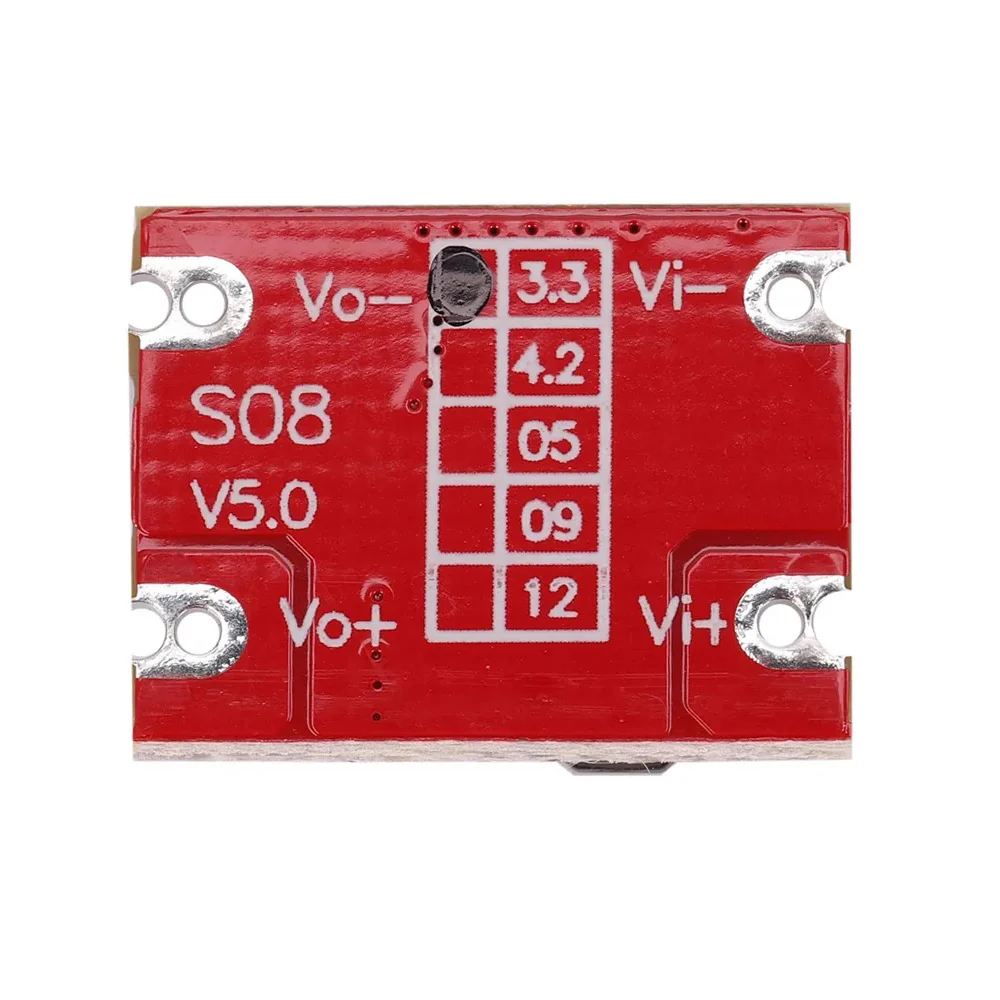

DC-DC Automatic Buck Boost Converter 2.5V-15V To 3.3V 5V Fixed Output Power Module
Boost Buck ModuleThe DC-DC power module is automatically raised and lowered to support the shutdown function. This power module contains the function of automatic buck-boost and integrates with the related circuit of buck-boost converter. Its mini body is very easy for embedding.
Specification:
- Input Voltage: 2.5～15Vdc
- Output Voltage: 3.3V
- Output Accuracy: ±0.1V
- The Maximum Output Peak Current: 600mA
- Full-load Output Ripple: Vpp
- No-load Current: IQÂ Â 180uA
- Switch-off Function: Not Support
- Operating Temperature: -40℃ ~ +85℃
- Operating Humidity: 20% ~ 90% relative humidity, no condensation
- Storage Temperature: -40℃ ~ +125℃
- Installation Method: Chip-mounting
- With or Without Isolation: Without Isolation
- Service Life: 30000h
- Size(LxW): 17×13mm
Features:
- Small sizes
- Stable performance
- Wide voltage range
- Suitable for high-demand applications
Applications:
- Power supply for controller main-board
- DIY current source
- Floodlight
- DIY toy car
- Communication device
- Digital radio
