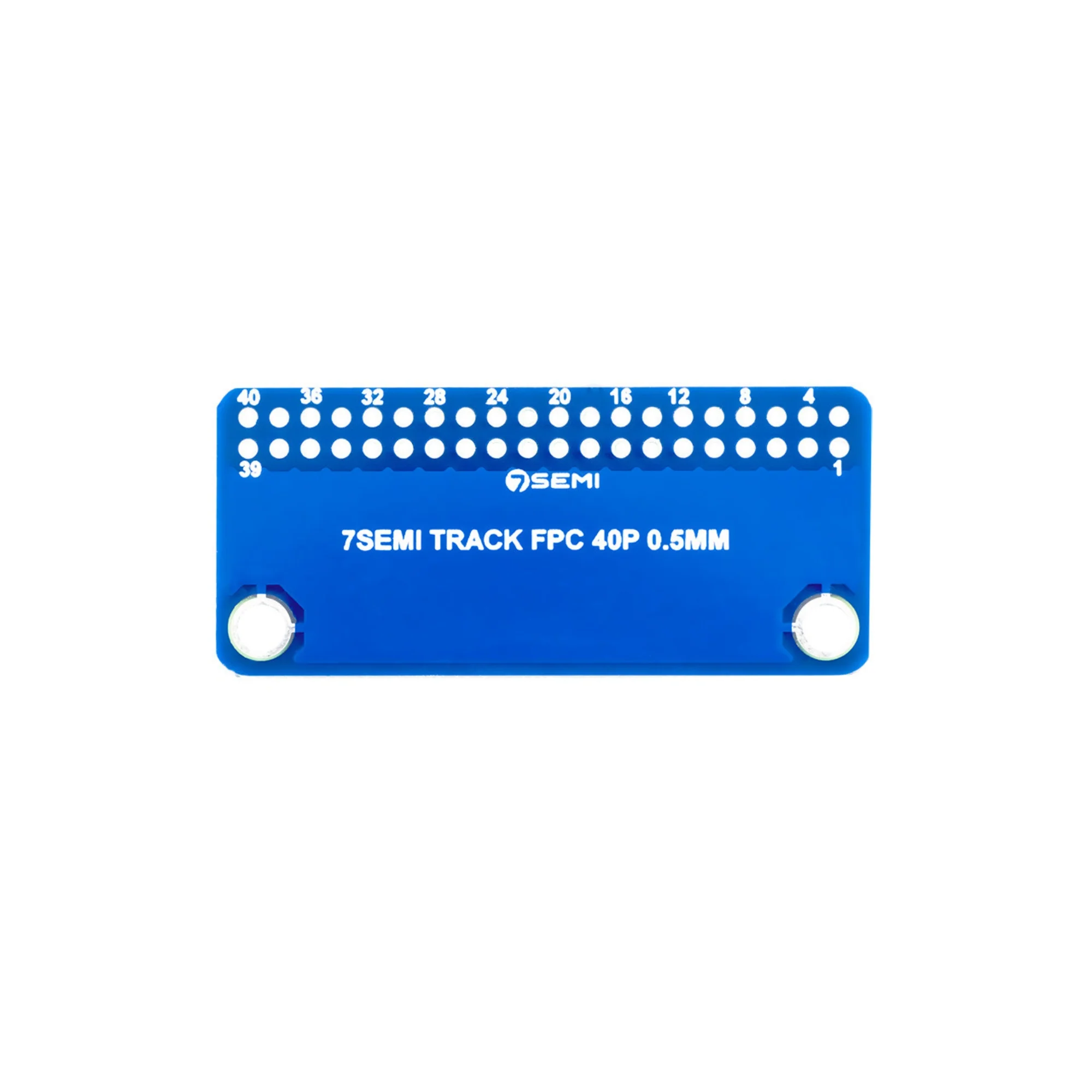

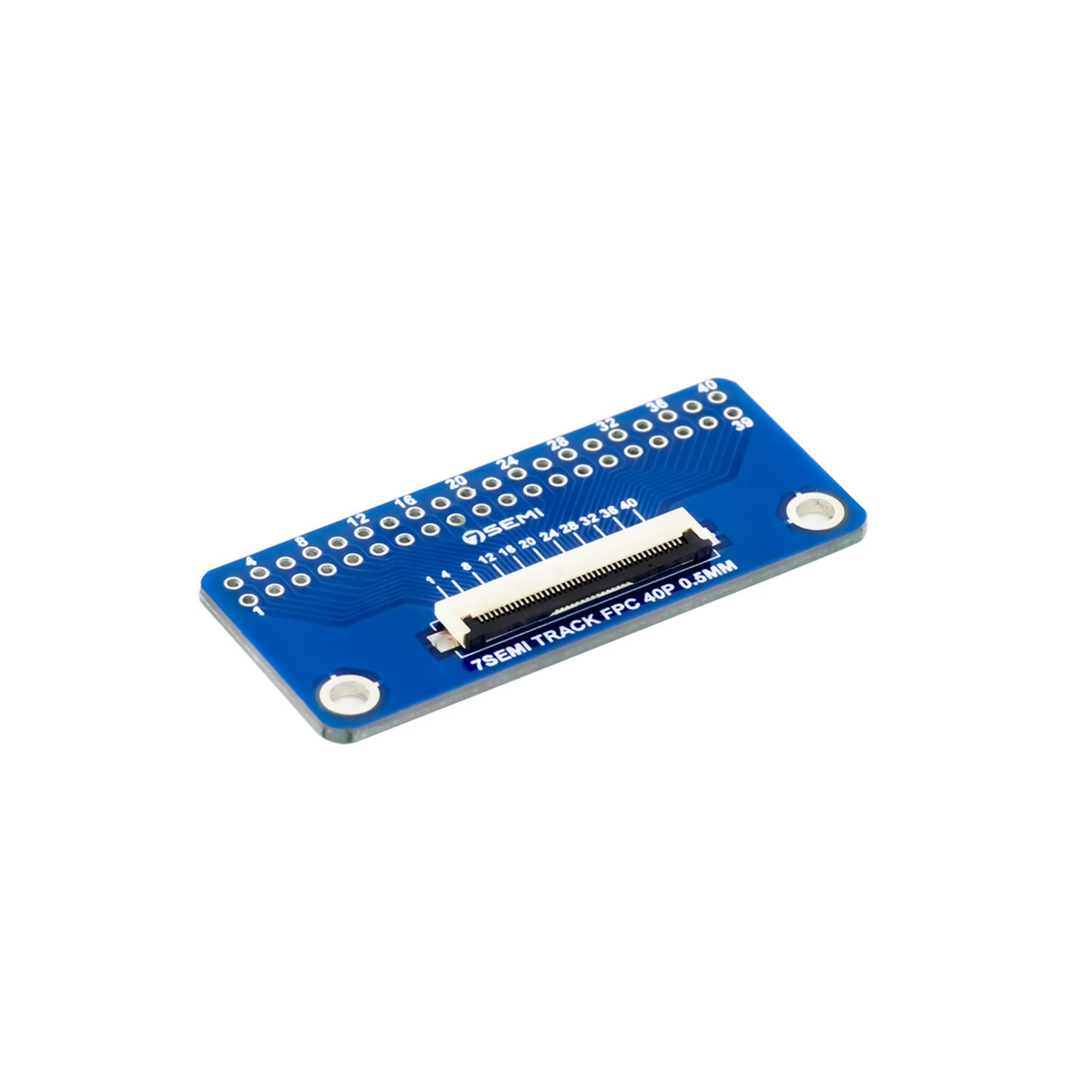

7Semi 40 Pin 0.5mm FFC FPC Connector Breakout Board

The 7Semi 40 Pin 0.5mm FFC/FPC Connector Breakout Board is a versatile adapter designed to simplify the connection between fine-pitch flat flexible cables (FFC) or flat printed cables (FPC) and standard 2.54 mm pitch prototyping systems. It breaks out all 40 pins from a 0.5 mm pitch FFC/FPC connector into easily accessible solder pads or header pins. This breakout board is ideal for interfacing displays, camera modules, or other compact electronic components that use 0.5 mm pitch ribbon connectors with breadboards, microcontrollers, or custom PCBs.

Technical Specifications:

• Connector Type: 40-pin FFC/FPC

• Connector Pitch: 0.5 mm

• Output Pitch: 2.54 mm (standard DIP spacing)

• Connector Type: ZIF (Zero Insertion Force) locking connector

• Board Material: High-quality FR-4 PCB

• Mounting Type: Solderable through-hole or header pin interface

• Dimensions: Compact and breadboard-friendly

• Color: Green solder mask with white silkscreen labeling

• Operating Temperature: -40°C to +85°C

• Compatibility: Suitable for both top-contact and bottom-contact FFC/FPC cables (depending on model)

• Number of Pins: 40

Features:

• Converts 0.5 mm pitch 40-pin FFC/FPC connector to 2.54 mm pitch header pins

• ZIF connector ensures reliable cable insertion and secure contact

• Easy integration with breadboards, perfboards, and custom PCBs

• Clearly labelled pinouts for quick and error-free connections

• Supports both flexible and rigid FFC/FPC cables

• Gold-plated contacts for enhanced conductivity and durability

• Compact design for use in prototypes and small devices

• High-quality PCB for mechanical strength and long-term reliability

Applications:

• Interfacing displays, camera modules, and sensors with microcontrollers

• Adapting fine-pitch connectors for prototyping and testing

• Embedded system development and evaluation

• Repair or modification of electronic assemblies with FFC/FPC connectors

• Custom hardware development for LCDs, touch panels, or flexible circuits

• Educational and R&D electronics projects requiring FPC/FFC connectivity
