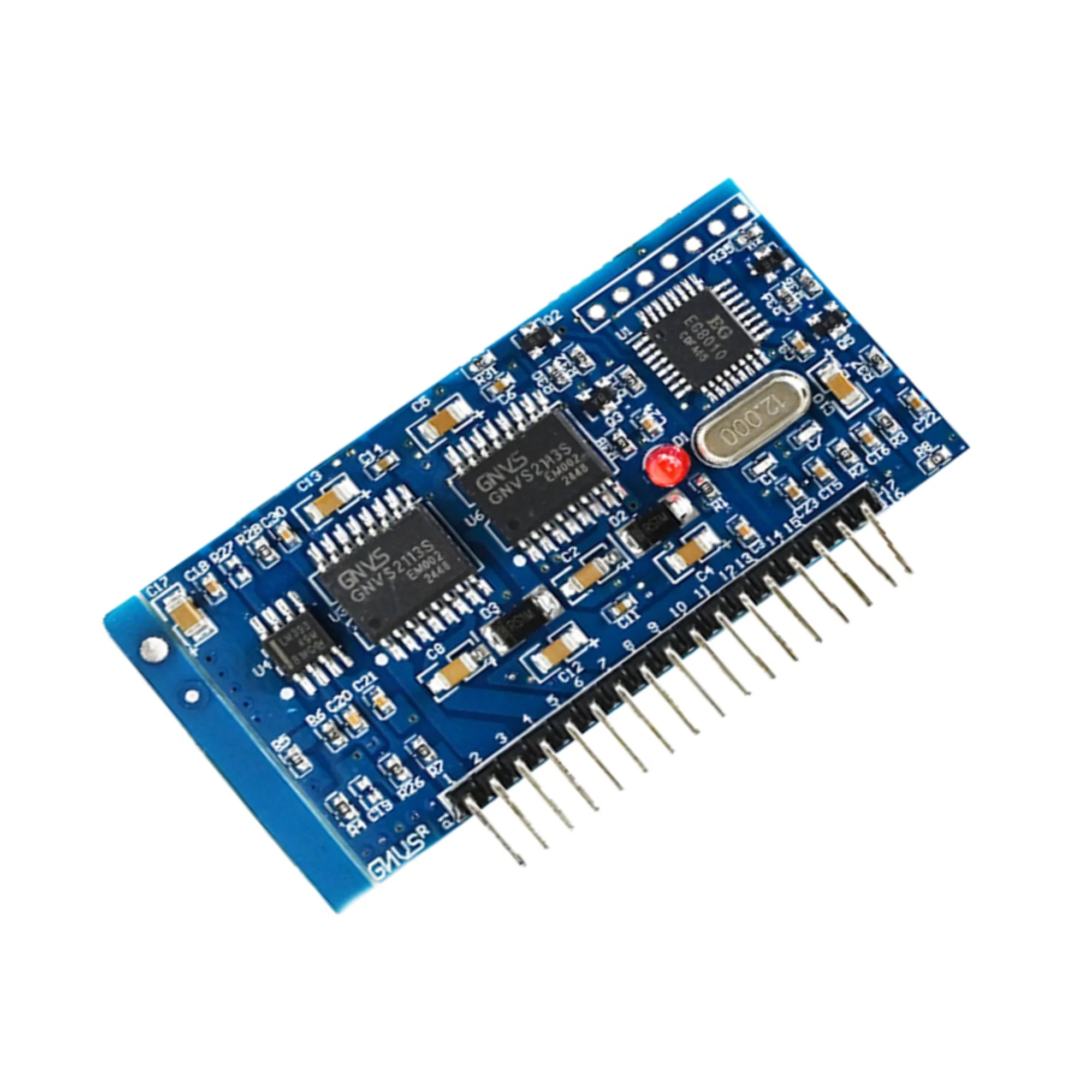

EGS002 EG8010+IR2113 SPWM Sine Wave Display

The EGS002 module is a dedicated SPWM (Sinusoidal Pulse Width Modulation) control board designed for pure sine wave inverter applications. It integrates the EG8010 digital sine wave controller with dual IR2113 high/low-side gate driver ICs to generate stable, high-quality sine wave outputs. This module is commonly used in DC to AC inverter systems, providing precise control, protection features, and reliable performance.

Technical Specifications:

Controller IC: EG8010 digital SPWM controller
Gate driver ICs: 2 × IR2113 high/low-side drivers
Output waveform: Pure sine wave (SPWM)
Supported inverter types: Single-phase full-bridge or half-bridge
Oscillator frequency: 12 MHz crystal
Output frequency: 50 Hz / 60 Hz selectable
Dead time control: Adjustable via onboard settings
Protection functions: Over-voltage, under-voltage, over-current, over-temperature
Supply voltage: Typically 12V DC
Interface: Pin headers for control signals and feedback

Features:

High-precision SPWM pure sine wave generation
Integrated gate drivers for direct MOSFET or IGBT control
Supports 50 Hz and 60 Hz output frequency selection
Built-in multiple protection mechanisms for safe operation
Stable and low-distortion output suitable for sensitive loads
Compact and ready-to-use inverter control solution

Applications:

Pure sine wave DC–AC inverters
Solar power inverter systems
UPS and backup power supplies
Home and industrial inverter designs
DIY and commercial power electronics projects
