OEM Type C Female Socket Connector Panel Mount Type with PC Board 24pin USB 2.0 Pinout

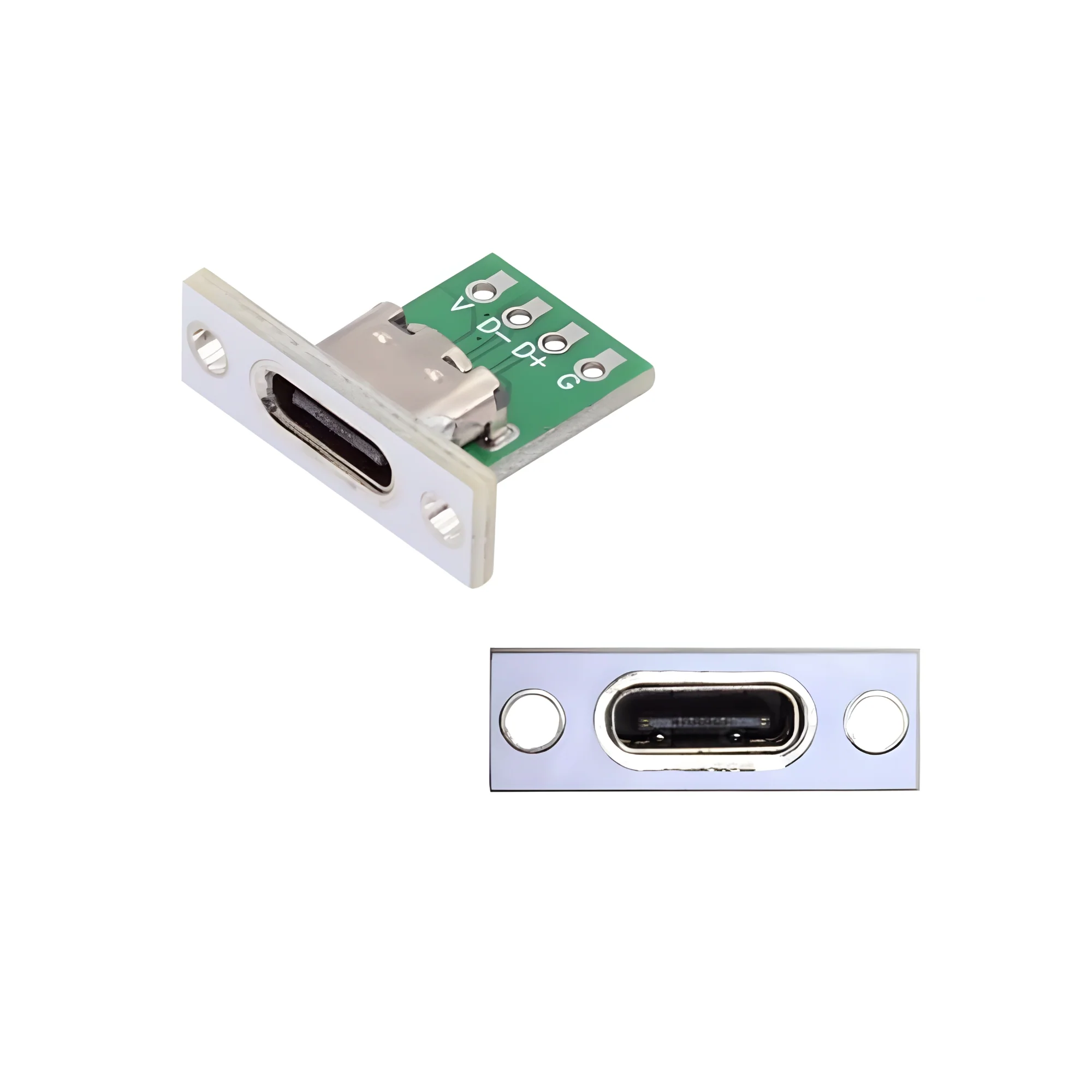

The USB Type-C Female PMT Module is a compact panel-mount breakout board designed to provide easy access to USB Type-C power and data connections. It converts a USB Type-C female connector into clearly labeled solder pads or pins, making it ideal for custom enclosures, DIY electronics, and embedded projects where a fixed USB-C port is required. The module supports basic USB power and data lines and is well suited for low-power applications.

Technical Specifications:

Connector Type: USB Type-C female
Mounting Type: Panel mount (PMT) PCB
Exposed Pins: V+, D+, D−, GND
USB Standard Support: USB 2.0
Rated Voltage: Up to 20 V (USB-C specification, application dependent)
Current Rating: Up to 3 A (trace and wiring dependent)
PCB Material: FR-4
Connector Orientation: Vertical / panel-mount
Solder Interface: Through-hole / solder pads

Features:

USB Type-C female connector for modern devices
Compact and lightweight PCB design
Easy panel mounting for enclosures and cases
Clearly labeled power and data pads
Suitable for power input and basic data applications
Ideal for prototyping and custom hardware builds
Durable connector with good mechanical strength

Applications:

DIY electronics and prototyping
Power input port for embedded systems
Custom enclosures and control panels
USB-powered projects and devices
Arduino, ESP32, and Raspberry Pi accessories
Repair and replacement of USB-C ports
